Surveyor™ Analog Temperature Sensor / Meter
Surveyor™ Analog Temperature Sensor / Meter
4 in stock
Description
The Gravity Analog Temperature Meter is an analog temperature sensing solution that gives consistent readings over the life of your machine.
Platinum temperature sensors provide the highest level of stability and repeatability. The Atlas Scientific Gravity Analog Temperature Meter is an analog temperature sensing solution that gives consistent readings over the life of your machine. Compatible with any off-the-shelf PT-1000 sensor, this drop-in component makes complex temp sensing easy.
Specifications
RTD | Resistance Temperature Detector |
Reads | Temperature |
Range | -100°C − 220°C |
Accuracy | +/– 0.5 °C |
Response time | Continuous analog output |
Supported probes | Any type & brand of PT-1000 RTD |
Calibration | Optional |
Temperature output | °C |
Data protocol | Analog 0 − 3V |
Operating voltage | 3.3V − 5.5V |
Dimensions | 56.2mm x 32mm (2.2″ x 1.2″) |
Weight | 13 grams |
Shipping & Returns
It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.
After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns
What's Included?

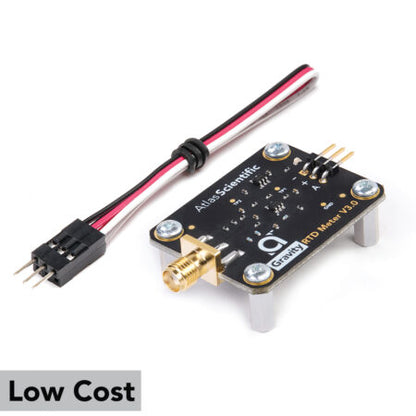

The Gravity™ Analog Temperature Sensor / Meter comes with:
• 1x Gravity™ Analog Temperature Sensor / Meter
• 4x standoffs and screws
• 1x 3 pin jumper cable
