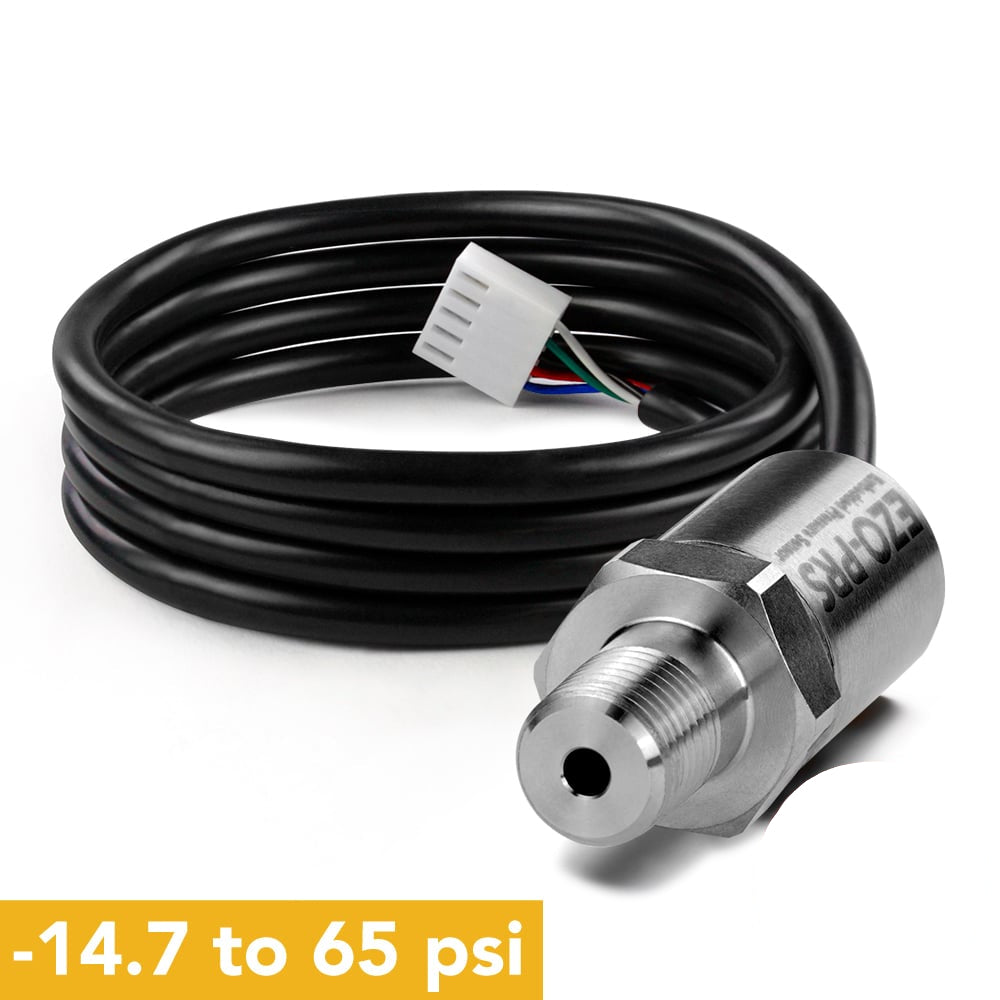

EZO-PRS™ Embedded Pressure Sensor
EZO-PRS™ Embedded Pressure Sensor
4 in stock
Description

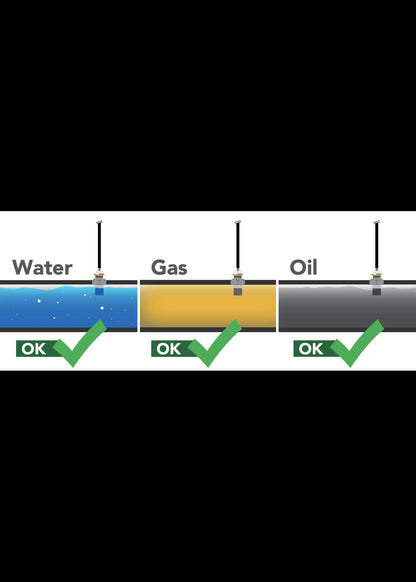

The EZO-PRS senso is a digital pressure sensor that provides the accuracy you need at a reasonable cost. The sensor can read the pressure of a liquid, gas, or oil from 0-50 psi.
For measuring pressure directly converted into a serial or I2C signal. The EZO-PRS Embedded Pressure Sensor comes pre-calibrated. This sensor does not lose its calibration over time and does not require recalibration. Some customers may want to make adjustments to the calibration. This can be done using the calibration commands.
Finding a good pressure sensor can be tough. Some seem so cheap they couldn’t possibly have any meaningful accuracy, while others are so expensive, how could anyone use them? The Atlas Scientific EZO-PRS is a digital pressure sensor that provides the accuracy you need at a reasonable cost. The sensor can read the pressure of a liquid, gas, or oil from 0-50 psi.
Specifications
Reads | Pressure (Gauge) |
psi (0 – 74.000) Default | |
atm (0 – 5.03) | |
bar (0 – 5.102) | |
kPa (0 – 510.212) | |
inches of water (0 – 2,050.36”) | |
cm of water (0 – 5,202.71cm) | |
Response time | 1 reading per second |
Resolution | 0.001 |
Accuracy | +/- 2% (1 psi) |

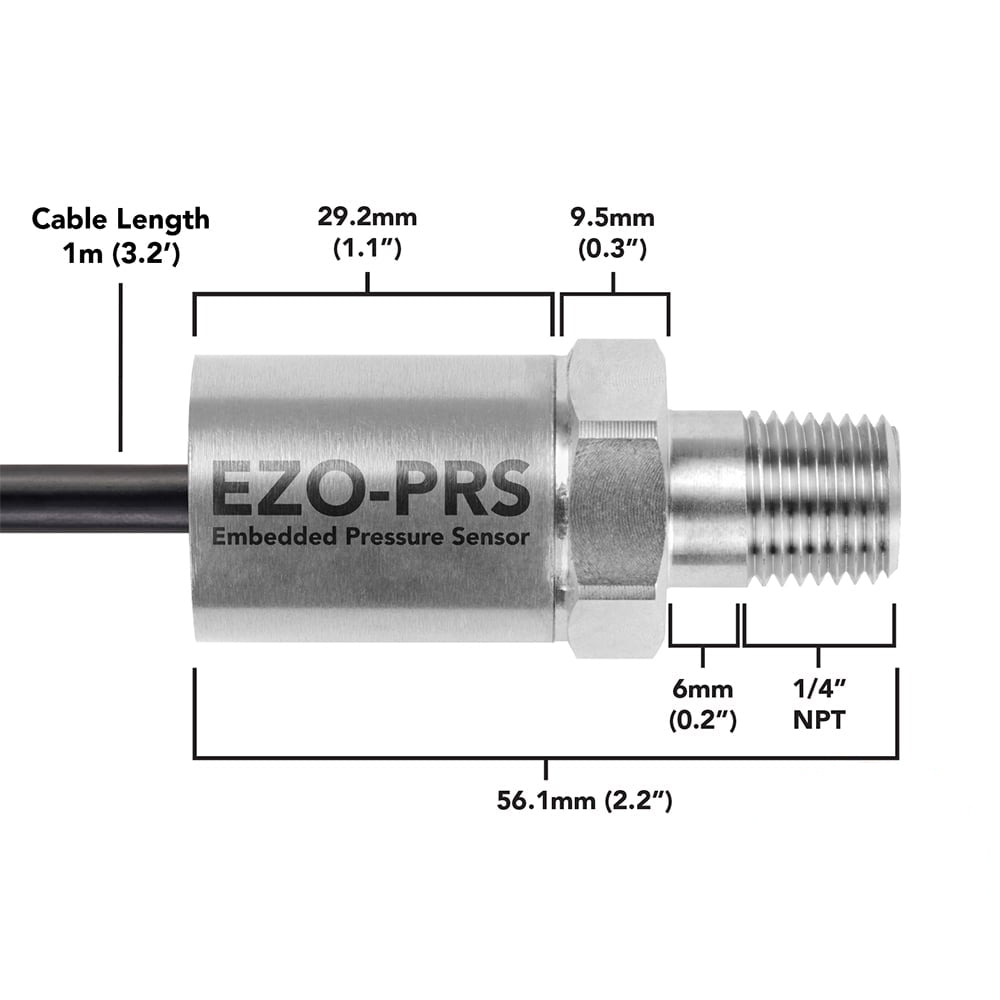

Threaded connection | 1/4″ NPT |
Cable | 1 meter / 5 lead |
Data protocol | UART & I2C |
Default I2C address | 106 (0x6A) |
Data format | ASCII |
Operating voltage | 3.3V − 5V |
Water resistant/dust proof | IP67 |
Shipping & Returns
It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.
After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns
What's Included?
The EZO-PRS™ comes with:
• 1x Embedded pressure sensor

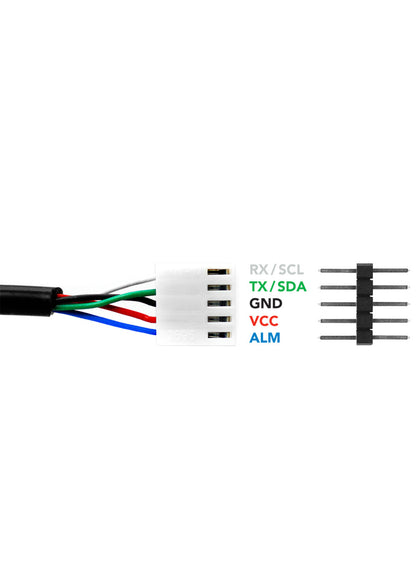

• 1x Data cable with 5 pin male header
