TRI-PMP-BX™
TRI-PMP-BX™
1 in stock
Couldn't load pickup availability
Description

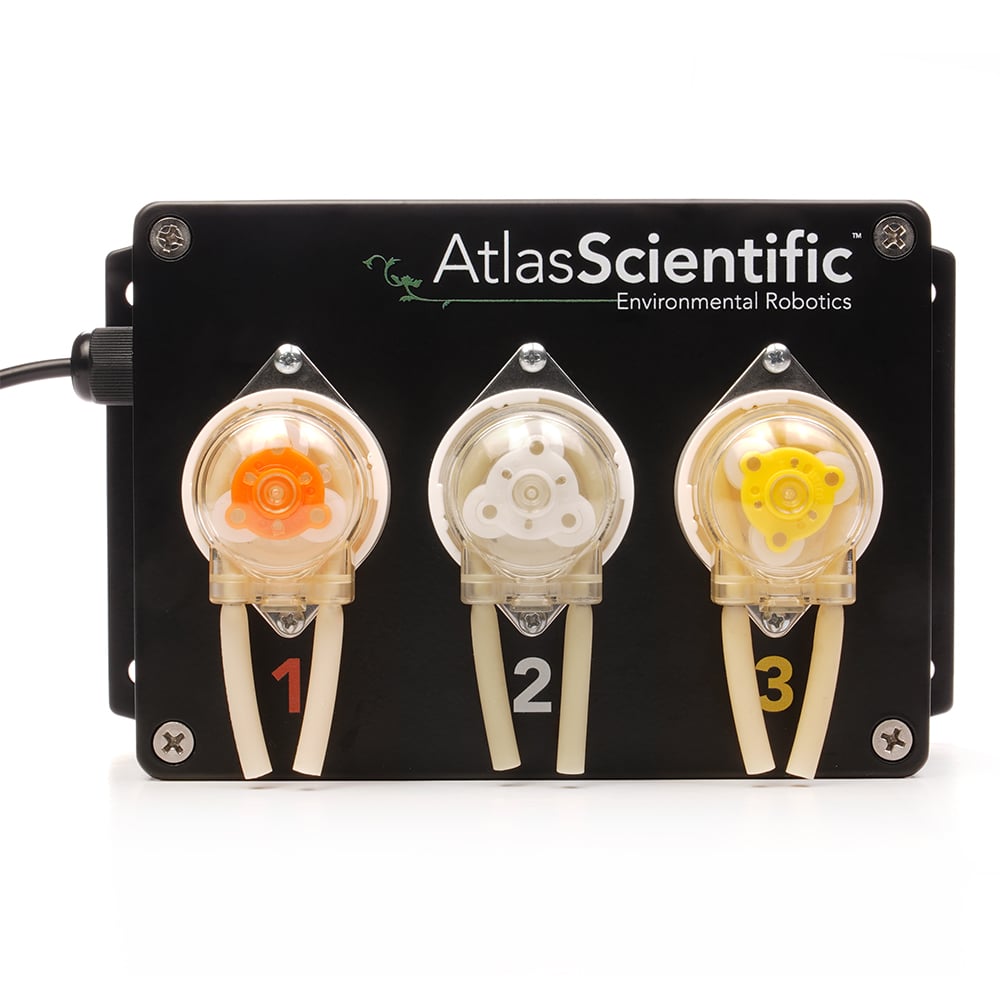

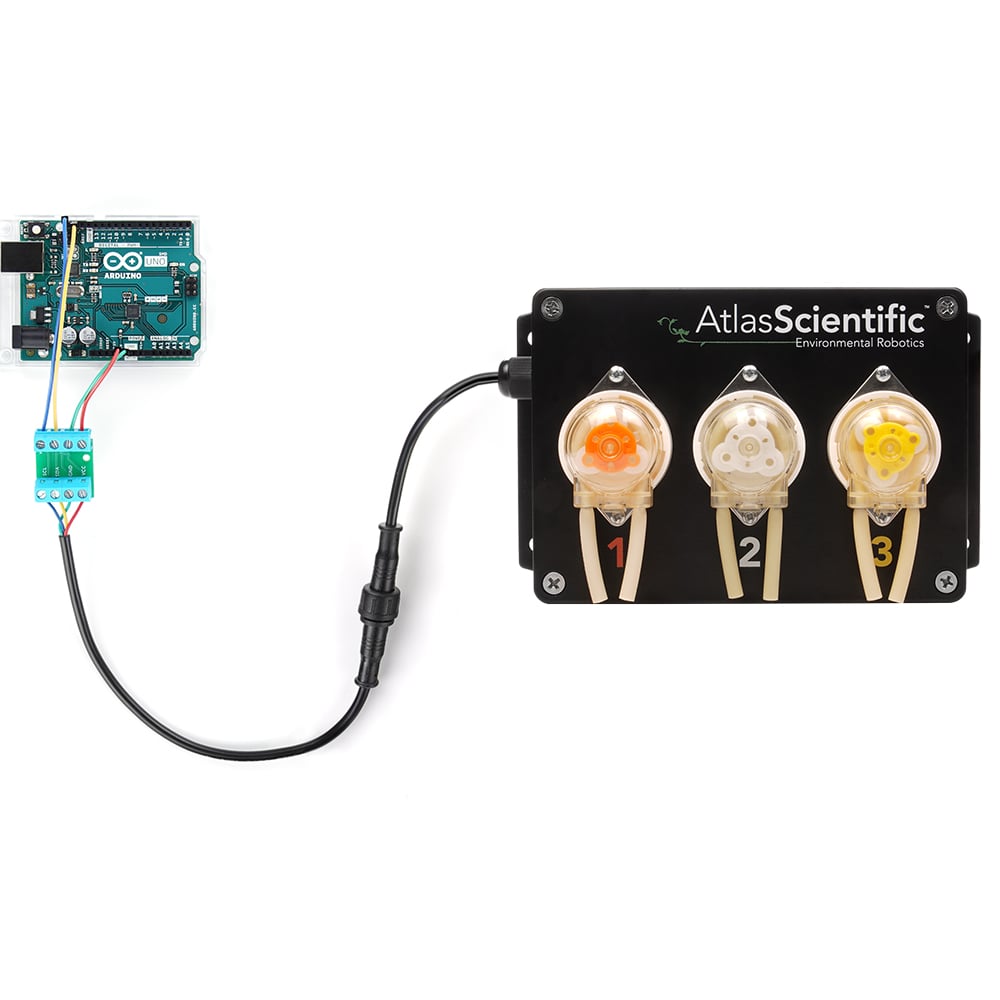

The TRI-PMP-BX™ system makes it easy to embed 3 peristaltic pumps into your machine. Each pump can be individually controlled using commands sent through the I2C bus. All Three pumps can run at the same time.
| Enclosure: | |

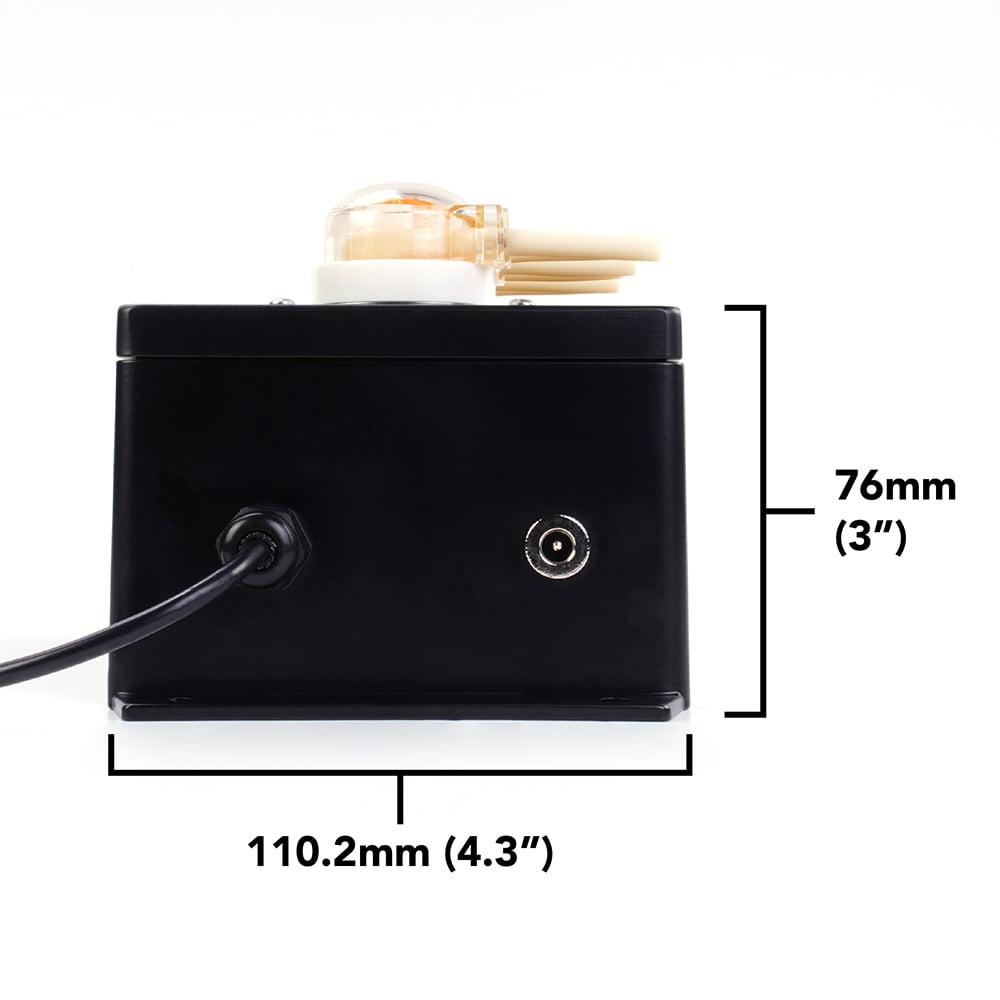

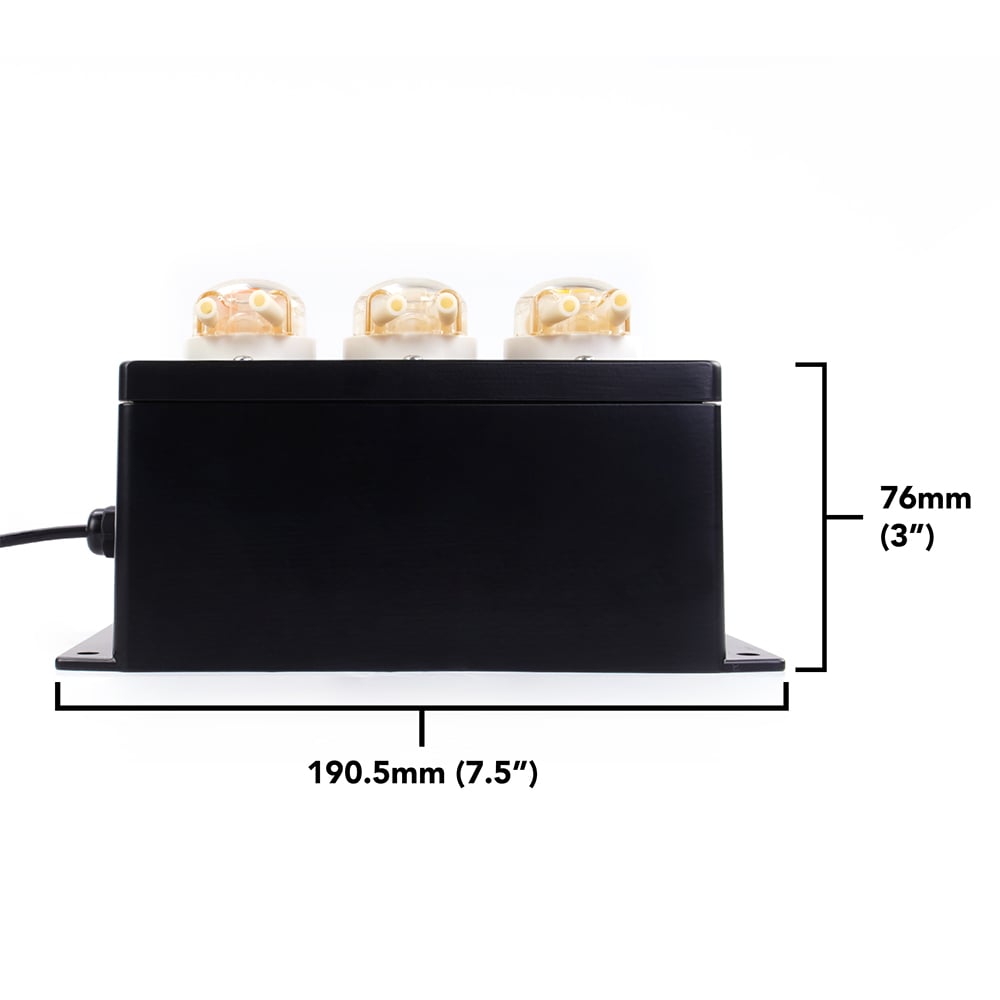

| Size | Metric: L = 190.5mm x W = 110.2mm x H = 76mm |
| Inch: L = 7.5″ x W = 4.3″ x H = 3″ | |
| Enclosure protection | IP-64 |
| Enclosure material | Body: Black powder-coated aluminum |
| Screws: Stainless steel | |
| Pump: | |
| Flow rate | 0.5ml to 105ml/mins (per pump) |
| Accuracy | +/- 1% |
| Modes of operation | Continuous dispensing (per pump) Volume dispensing (per pump) Dose over time mode (per pump) Constant flow rate (per pump) Dispense at startup (per pump) |
| Connector | 5 lead data cable |
| Calibration | Single point |
| Supplied tubing | 15.24 cm |
| Tubing size | Any 5mm O.D. tubing |
| Data protocol | I2C |
| Default I2C address | 56 (0x38) 57 (0x39) 58 (0x3A) |
| Operating voltage | 3.3V – 5V (logic) |
| 12V – 24V (motor) | |
| Pump head | 8.1 meters (26.5’) |
| Data format | ASCII |
| Food safe | Yes |
Specifications
Shipping & Returns
It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.
After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns
What's Included?

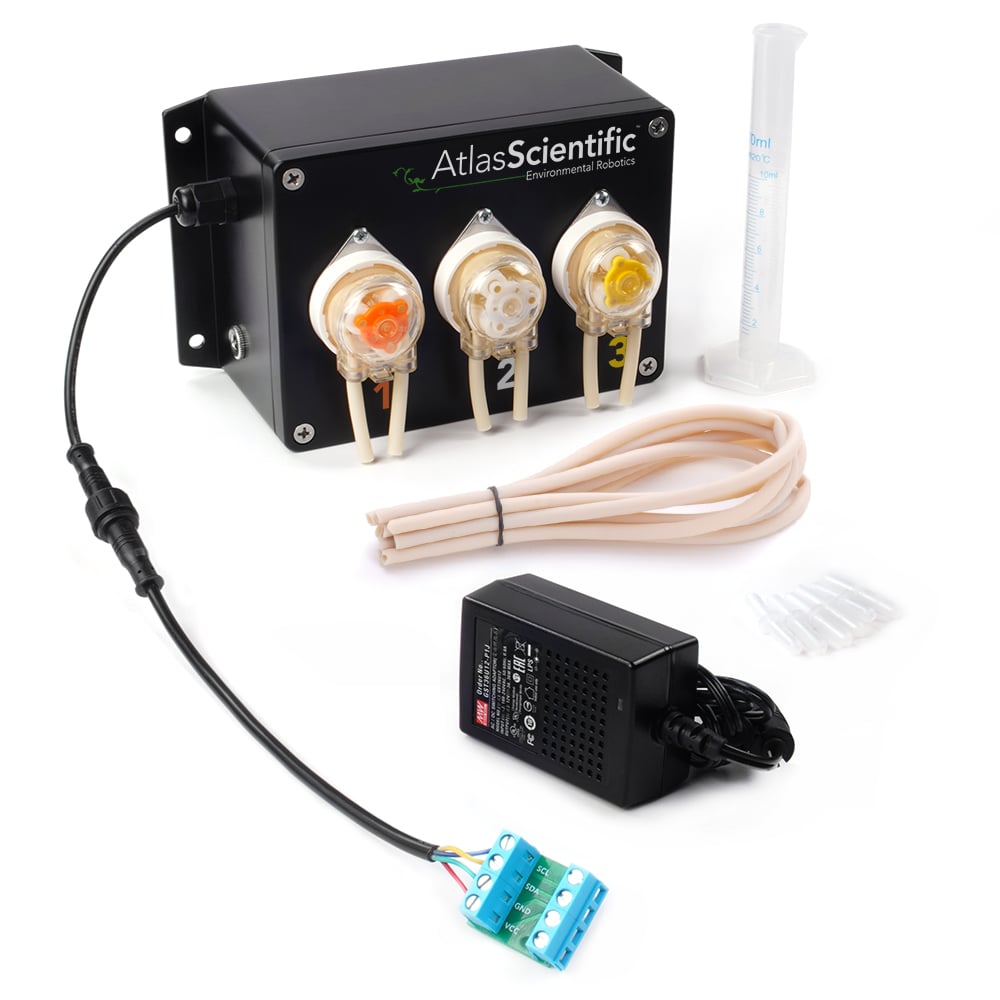

The TRI-PMP-BX™ system comes with:
- Three peristaltic pumps with controller boards; inside an aluminum enclosure.
- 6x inline tubing connectors.
- 6x 30 cm long pump tubes.

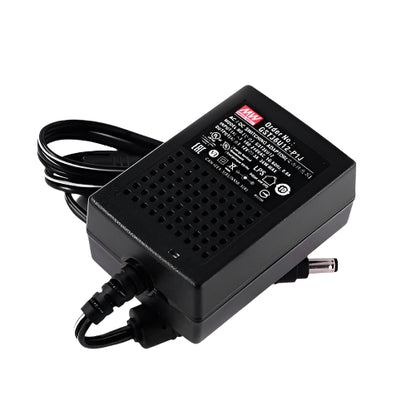

- 1x 24 volt power supply
- 1x 10ml graduated cylinder (for calibration).
