Atlas Scientific

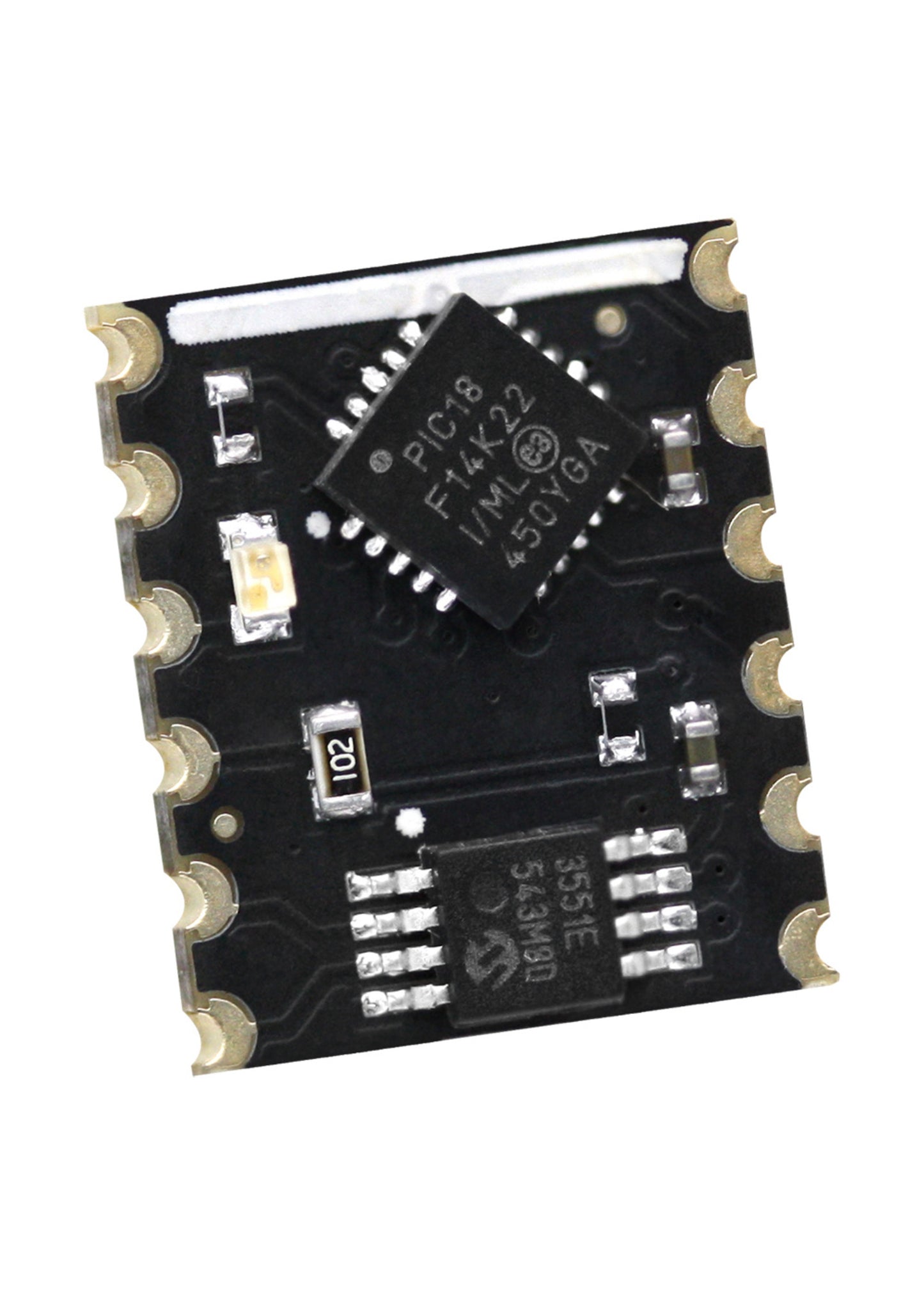

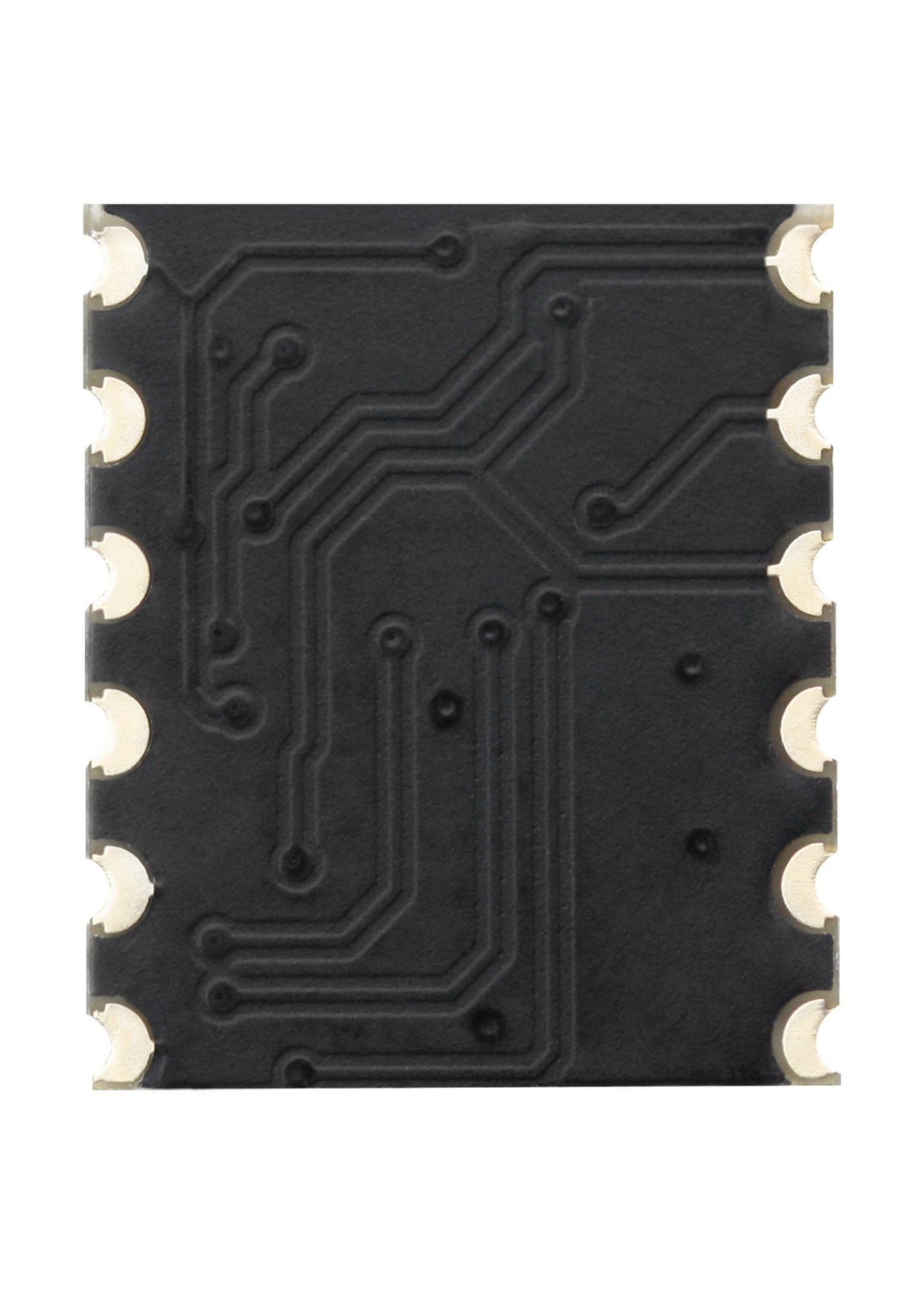

RTD 4-Wire Temperature OEM™ Circuit

RTD 4-Wire Temperature OEM™ Circuit

Regular price €33.95 EUR
Regular price Sale price €33.95 EUR
Sale Sold out
Shipping calculated at checkout.

15 in stock

Description

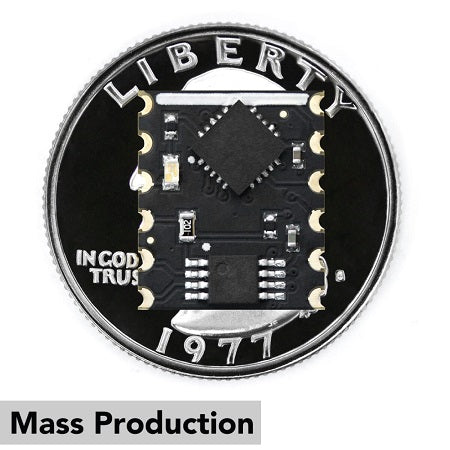

Atlas Scientifics OEM class RTD 4-Wire circuit offer the engineers a slim downed version of the EZO RTD circuit. We cut out the fat and get right to the point, high accuracy RTD readings. The small footprint and low cost makes the OEM RTD circuit the perfect choice for engineers who are mass producing a product.





Specifications

RTDResistance Temperature Detector RTD
ReadsTemperature in °C
Range-126.000 °C − 1254 °C
Resolution0.001
Accuracy+/– (0.1 + 0.0017 x ̊C)
Response time1 reading every 420ms
Supported probesAny type & brand PT-100 or PT-1000 RTD
Supported configuration2 wire, 3 wire or 4 wire RTD
CalibrationSingle point
Data protocolSMBus/I2C
Default I2C address0x68
Operating voltage3.0V − 3.6V
Data formatASCII
Electrical Isolation not needed

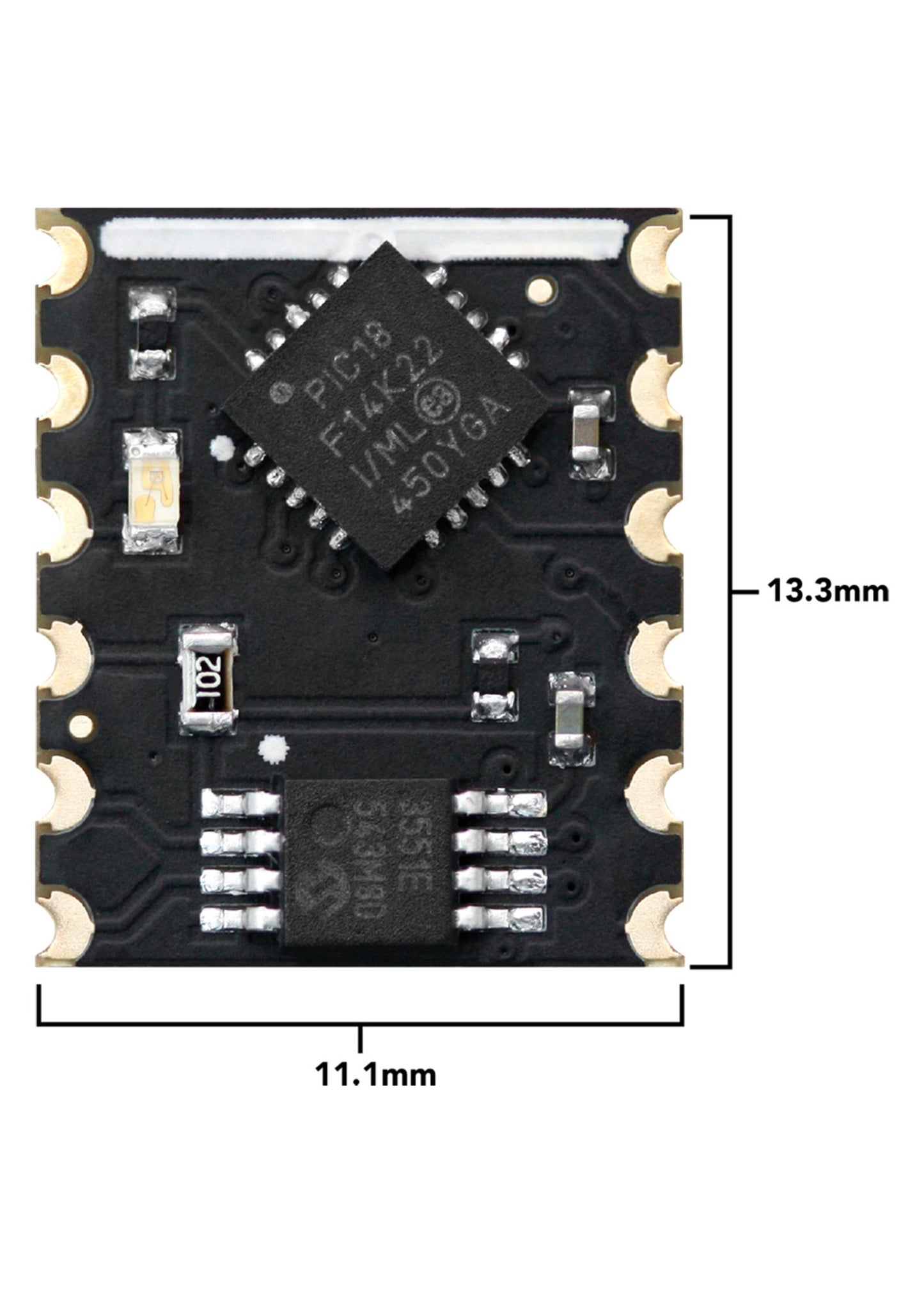

Circuit dimensions11.1mm x 13.3mm (0.43″ x 0.52″)
Weight0.56 grams

Shipping & Returns

It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.

After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns

What's Included?

The RTD 4-Wire Temperature OEM™ Circuit comes with:



• 1x RTD 4-Wire Temperature OEM™ Circuit

Documentation
