Ready Pump Large
Ready Pump Large
Description

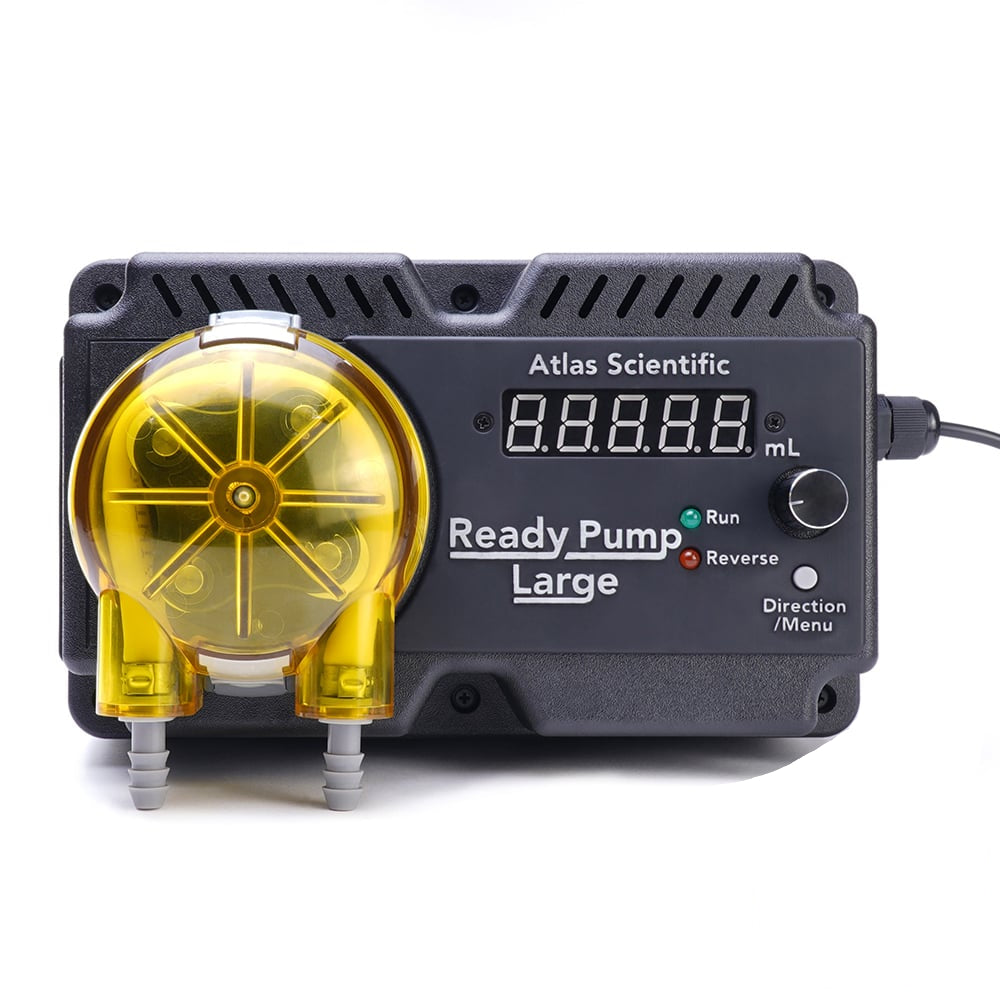

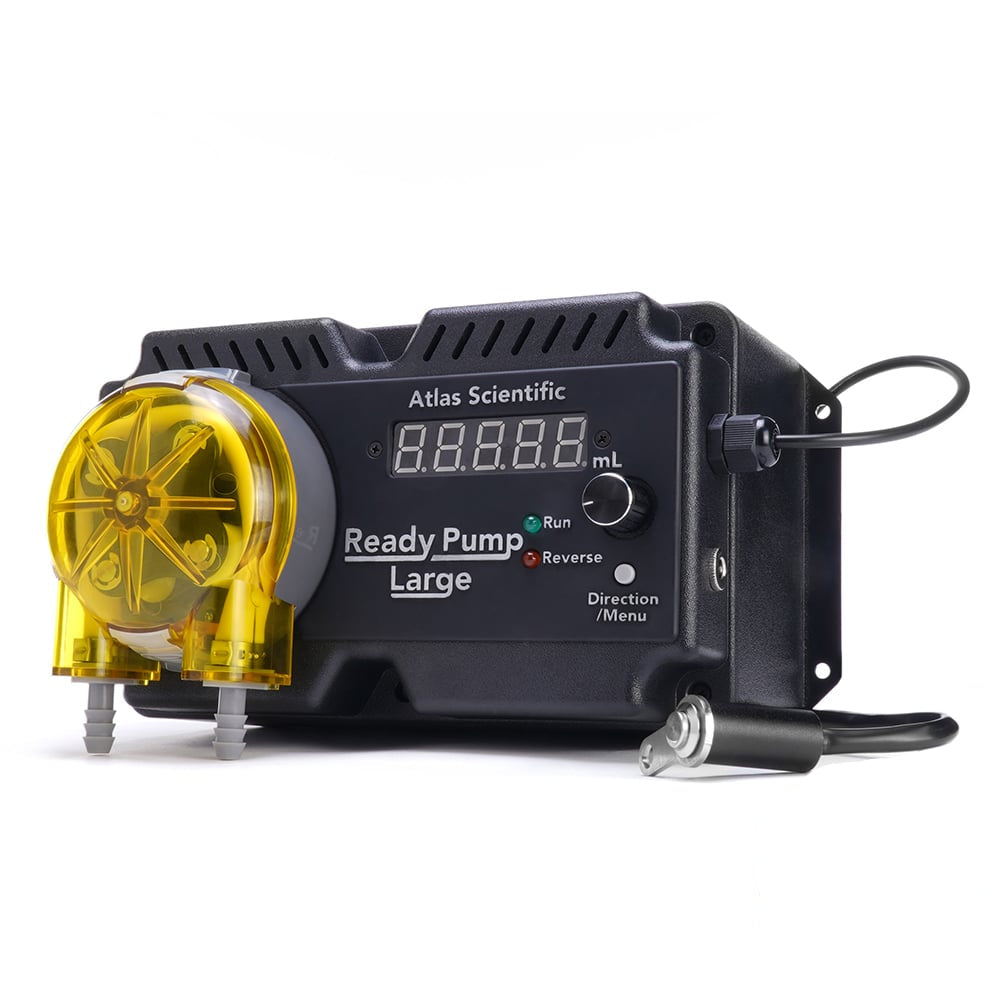

Ready Pump Large is a self-contained dosing pump that can be used by a human, microcontroller, or PLC.
Ready Pump Large has been designed to be very easy to set up and use. Set your dispensing dose through the user interface, no computer programing required.
Ready Pump Large offers two modes of operation:

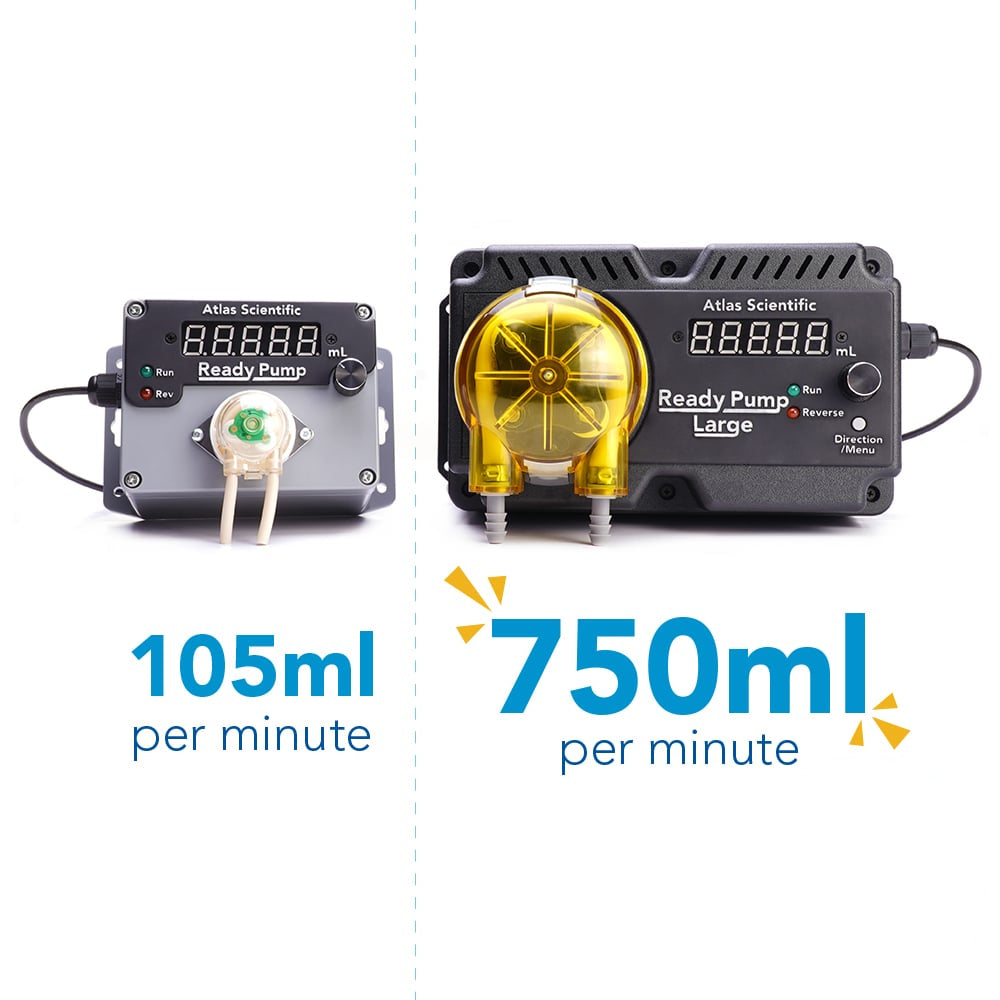

Continuous dosing 750ml/min (water)
Programmable dosing 10mL – 100 liters
Specifications
| Modes of operation: | |
| Continuous dosing | 750ml/min |
| Programmable dosing | 10mL – 100 liters |
| Pump control: | |
| Human operator | Push button |
| Machine control | PLC or microcontroller |
| Calibration | Single point |
| Supplied tubing: | |
| Tubing length | 2 meters (6.5′) |
| Tubing material | Tygon A-60-F |
| General info: | |
| Accuracy | +/- 1% |
| Resolution | 0.1ml |
| Pump head | 10.3 meters (34′) |
| Food safe | NSF/ANSI 51 Food Safe Compliant |
| Enclosure protection | IP 61 Indoor use only |
| Power supply | 24VDC 1.25 Amp |
Shipping & Returns
It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.
After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns

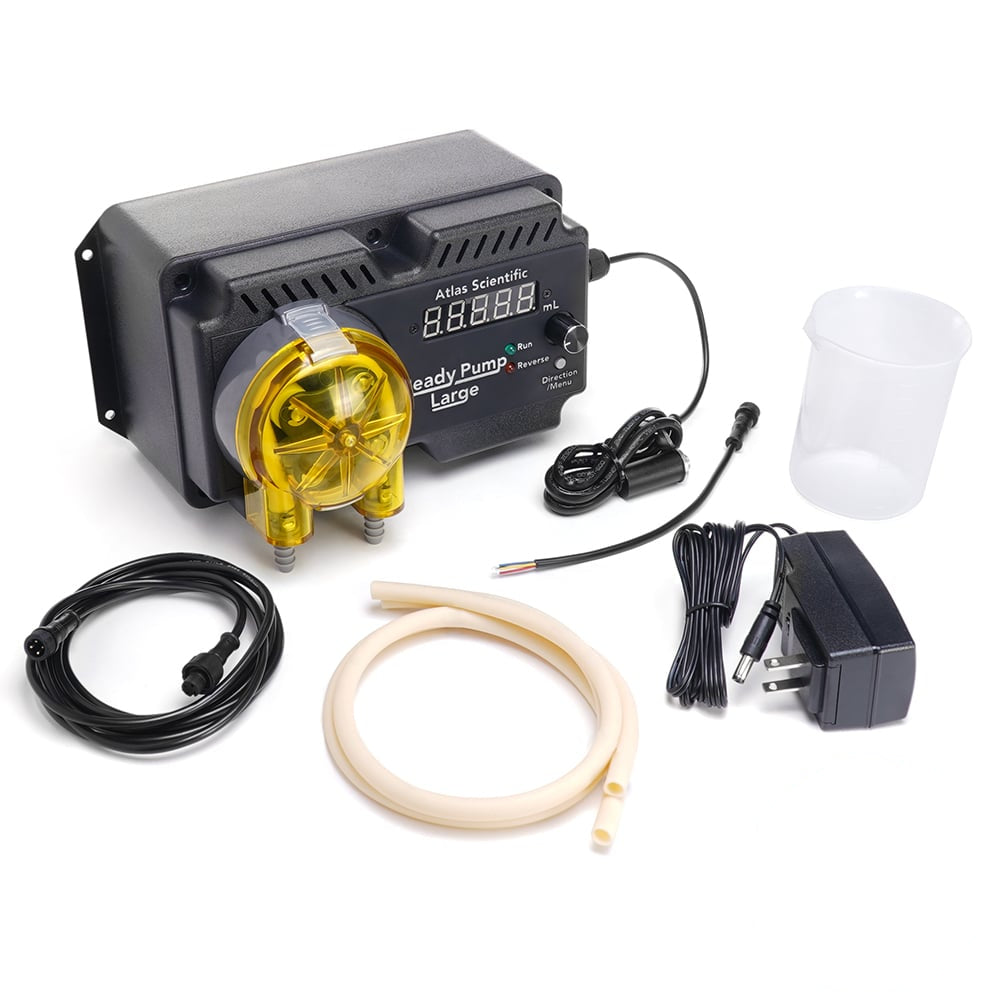

What's Included?
the ready pump large comes with:
- 1x Ready pump housing
- 1x Pump casette
- 2x Tubing connector
- 1x tubing
- 1x Power supply unit
- 1x Graduated cylinder
- 1x Dispense button
- 1x Extension cable
