EZO Complete-Conductivity™
EZO Complete-Conductivity™
4 in stock
Couldn't load pickup availability
Description

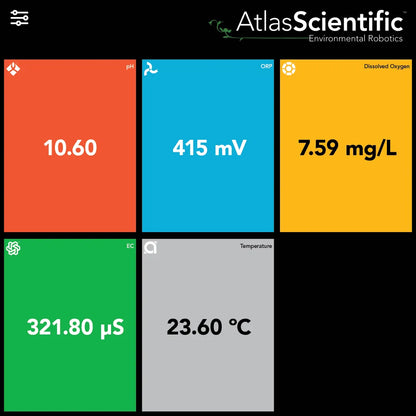

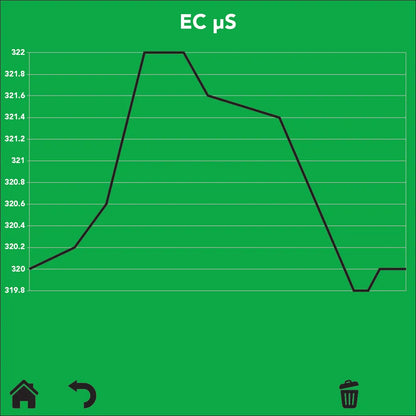

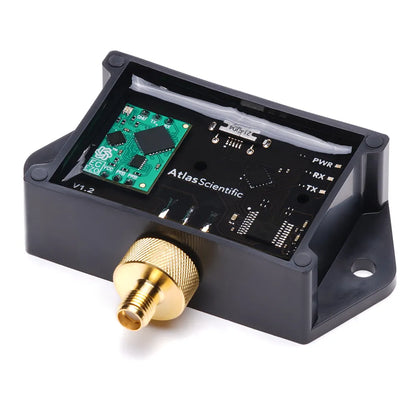

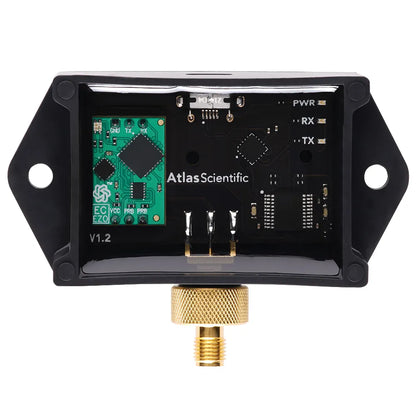

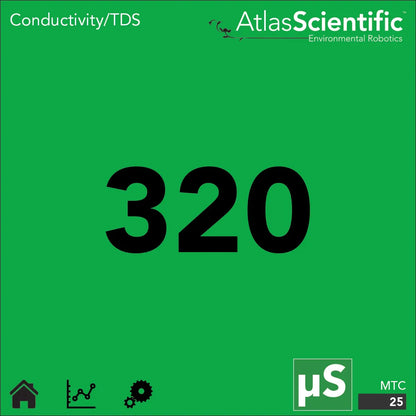

The EZO-Complete USB Conductivity meter makes building a custom monitoring system easy. Simply connect the EZO-Complete to a PC and install the free Atlas Desktop software. Connect multiple EZO-Complete conductivity modules to read conductivity from multiple locations. Embedded systems engineers can use EZO-Complete Conductivity with any USB-enabled microcontroller. EZO-Complete will create a virtual comport and is controlled using simple serial strings.
Specifications
| Reads | Conductivity = μS/cm |
| Total dissolved solids = ppm | |
| Salinity = PSU (ppt) 0.00 – 42.00 | |
| Specific gravity (sea water only) = 1.00 – 1.300 | |
| Range | 0.07 − 500,000+ μS/cm |
| Accuracy | +/ – 2% |
| Response time | 1 reading per sec |
| Supported probes | K 0.1 – K 10 any brand |
| Calibration | 2 or 3 point |
| Temp. compensation | Yes |
| International standard | ISO 7888 compliant (determination of electrical conductivity) |

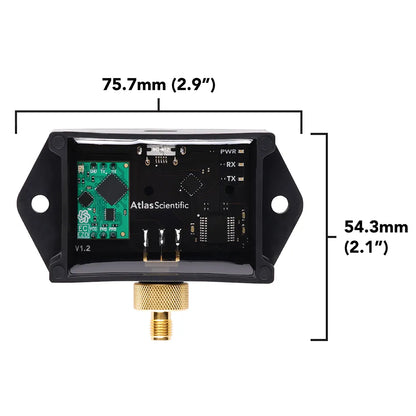

| Dimensions | 75.7mm x 54.3mm (2.9″ x 2.1″) |
| Weight | ~54 grams |
| Data protocol | Serial strings through FTDI virtual comport |
| Data format | ASCII |
| Operating voltage | 5V USB |
Shipping & Returns
It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.
After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns
What's Included?
The EZO Complete-Conductivity™ comes with:
Documentation
