Atlas Scientific

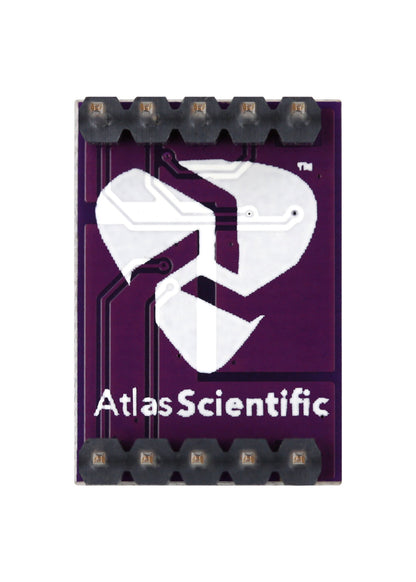

Basic EZO™ Inline Voltage Isolator

Basic EZO™ Inline Voltage Isolator

Regular price €24.95 EUR
Regular price Sale price €24.95 EUR
Sale Sold out
Shipping calculated at checkout.

7 in stock

Description

The ADM3260 can output isolated power up to 150 mW and incorporates two bidirectional data channels. The two data channels have 4.7kΩ pull up resistor on both the isolated and
non-isolated lines.






Specifications

This technology works by using tiny transformers to induce the voltage across an air gap. PCB layout requires special attention for EMI/EMC and RF Control, having proper ground planes and keeping the capacitors as close to the chip as possible are crucial for proper performance.



Data inputUART, I2C and SMBus
Max data rate1 MHz
Output voltage3.9V ± .07
Voltage input3.0V − 5.0V
Power savingEN pin
Current consumption5V – 15 mA
3.3V – 20 mA

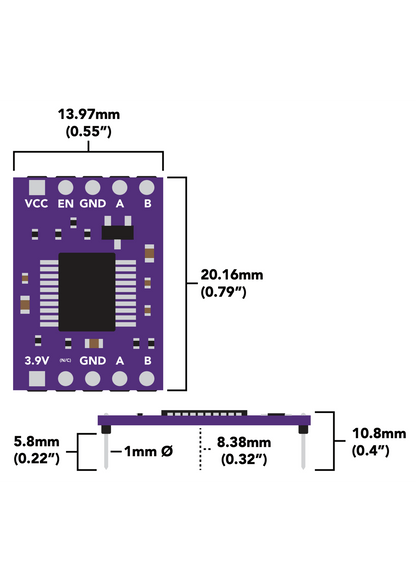

Circuit dimensions13.97mm x 20.16mm (0.55″ x 0.79″)
Weight1.76 grams

Shipping & Returns

It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.

After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns

What's Included?

This product includes 1 Basic EZO™ Inline Voltage Isolator.
