Atlas Scientific

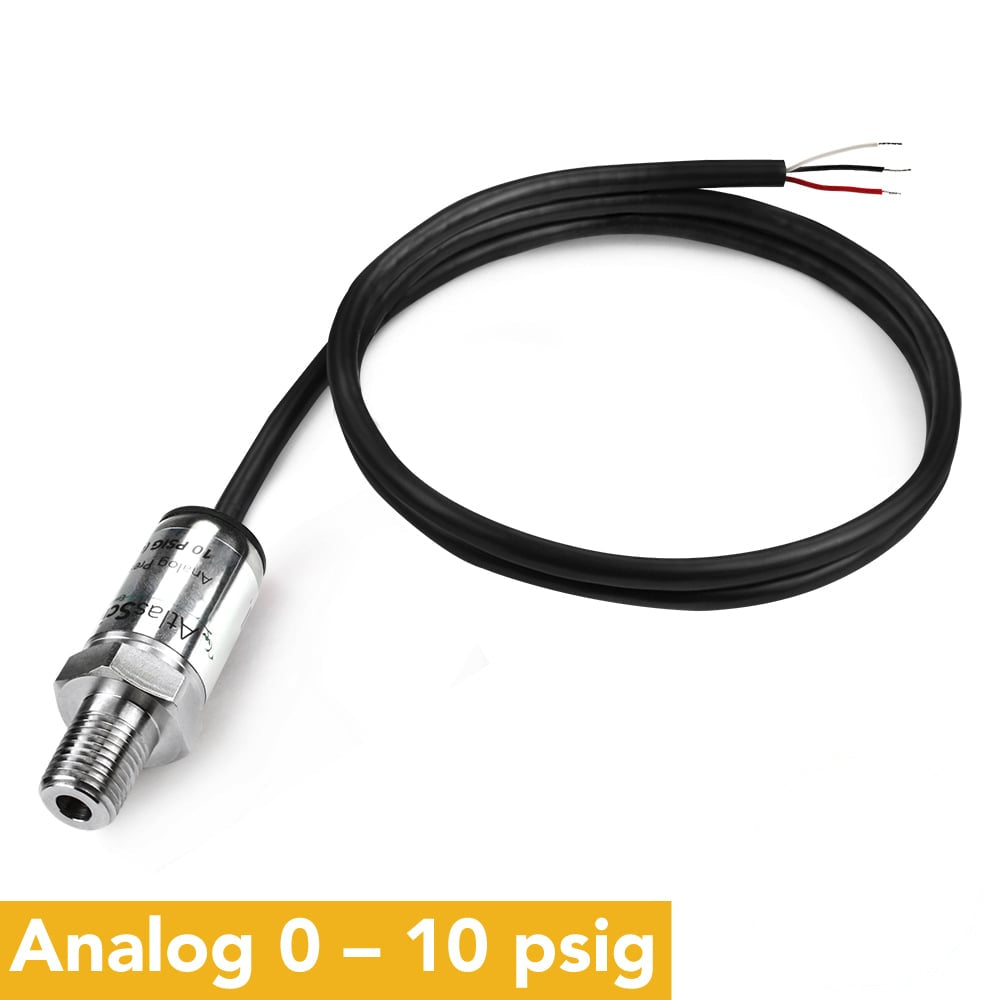

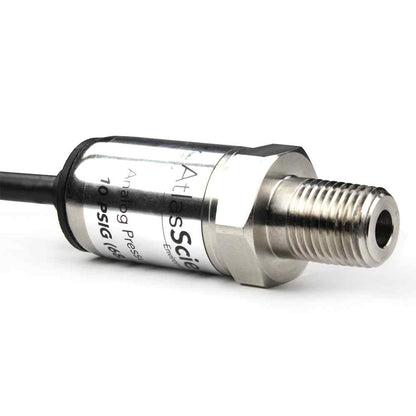

A-10 Analog Pressure sensor

A-10 Analog Pressure sensor

Regular price €165.95 EUR
Regular price Sale price €165.95 EUR
Sale Sold out
Shipping calculated at checkout.

0 in stock

Description

Analog Pressure sensor. For high accuracy.

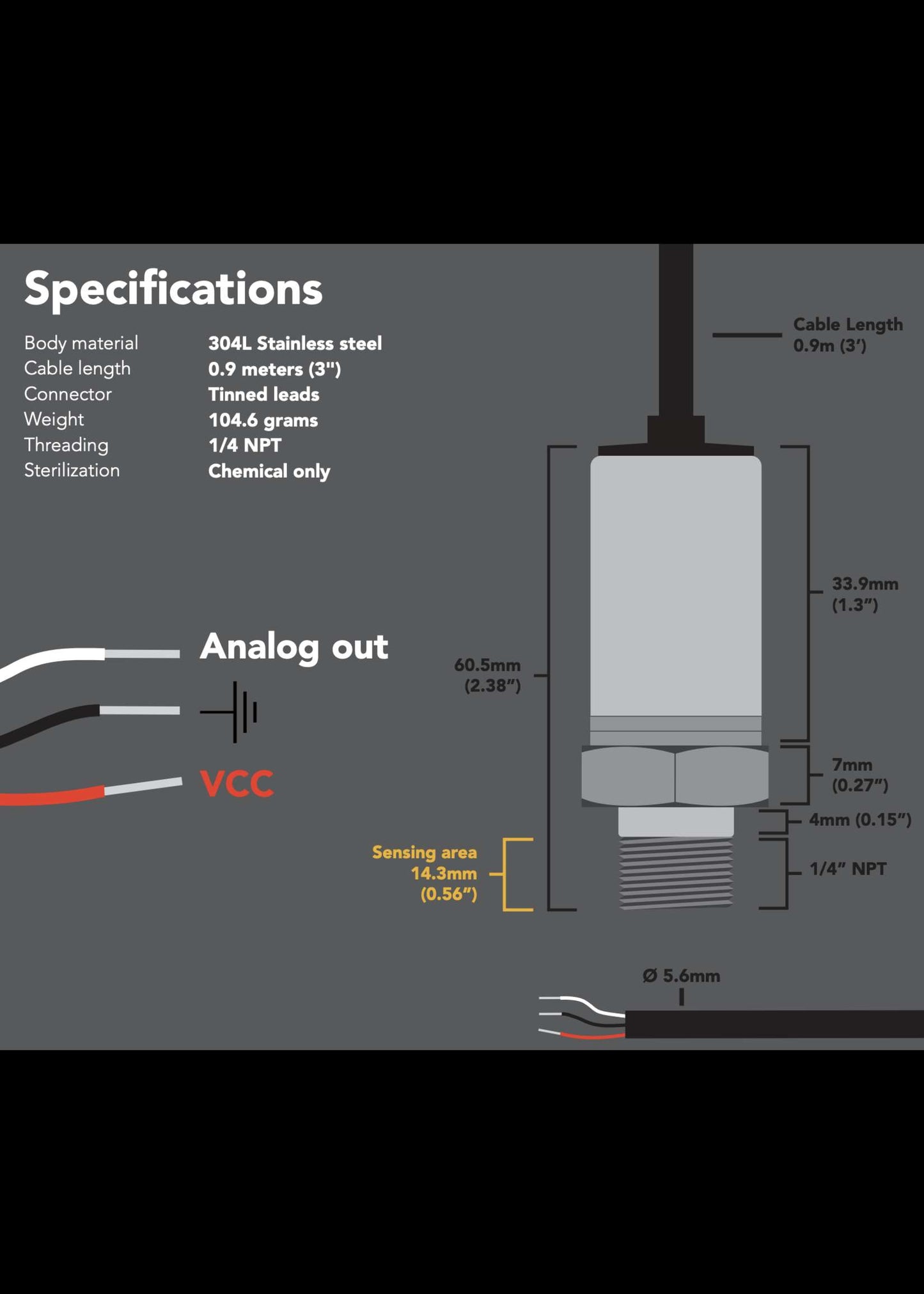

Specifications

Internally the pressure sensor uses a piezoresistive semiconducting element. The semiconducting element (a silicon wafer) changes its resistance in proportion to pressure. As the pressure increases the atomic spacing of the silicon atoms decreases, this in turn lowers the resistance of the silicon wafer.



ReadsPressure (PSIG)
Range10 PSIG (68.947 kPa)
Resolution1mv (.0025 PSI /0.017 kPa)
Accuracy<± 0.1 PSI (0.689 kPa)

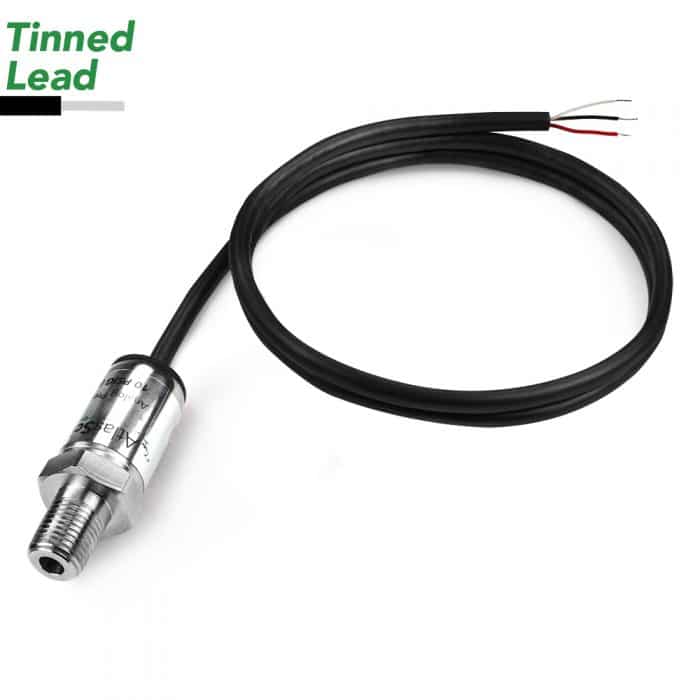

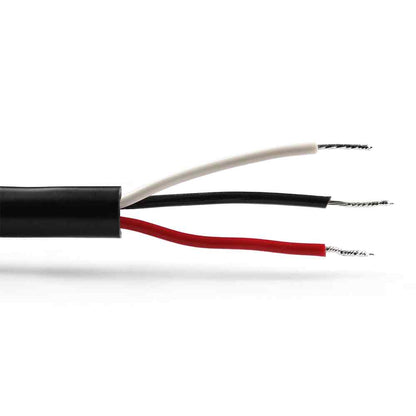

ConnectorTinned leads
Response Time< 1ms
Data protocolAnalog voltage
Data format0.5 VDC – 4.5 VDC
Operating voltage5 VDC
DurabilityIP67

Shipping & Returns

It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.

After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns

What's Included?

This product includes 1 A-10 Analog Pressure Sensor.
