3/4" Flow Meter
3/4" Flow Meter
2 in stock
The 3/4” Paddle Flow Meter is an extremely accurate flow meter of low complexity.
This flow meter requires specific timing and calculations to provide meaningful data.

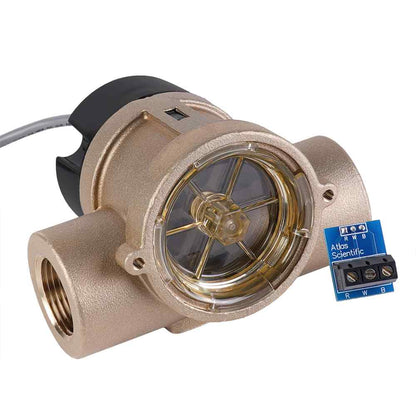

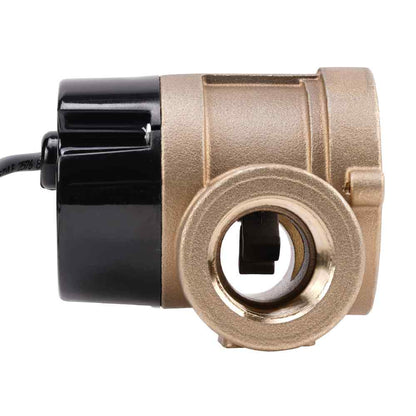

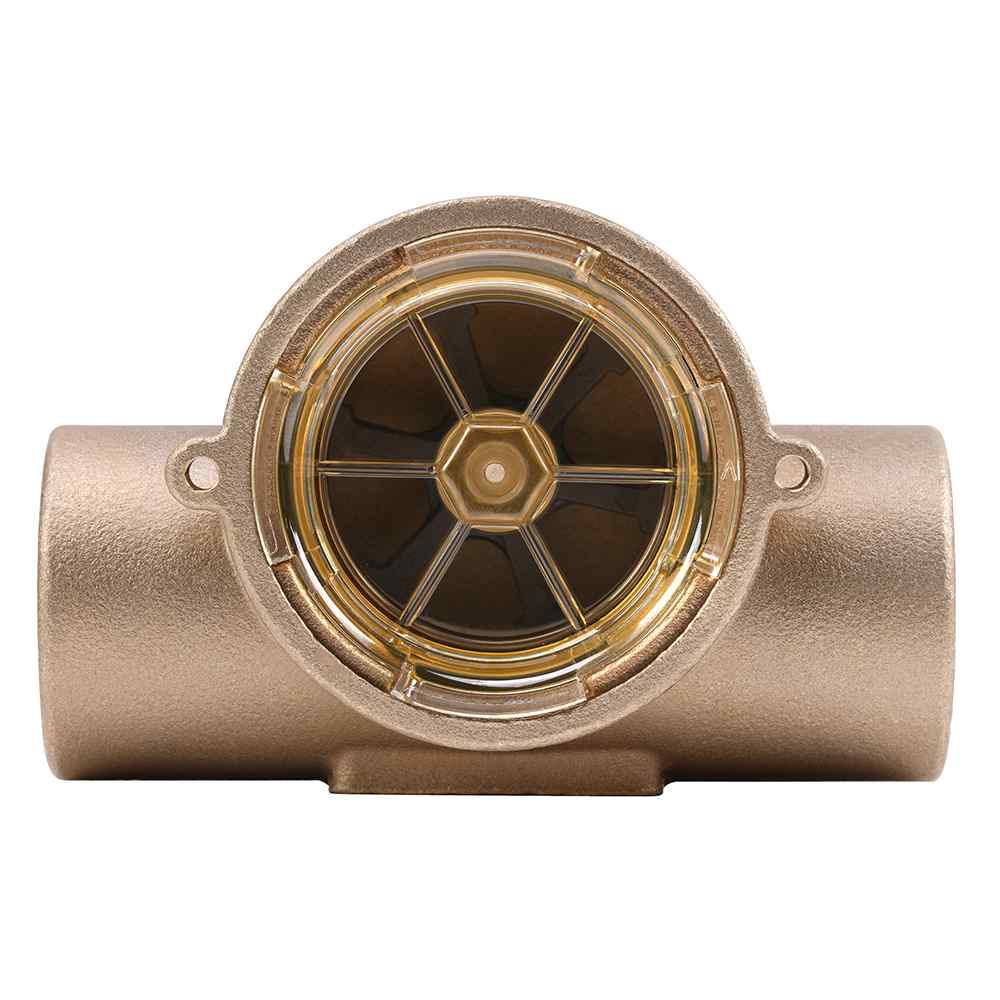

The Atlas Scientific 3/4” female NPT magnetic paddle wheel flow meter has a been designed with a rugged body cast in solid brass. The clear thermoplastic “sight glass” makes it easy to see that the flow meter is working and free of clogs. This flow meter is intended for large flow ranges from 19 L/min (5 GPM) up to 114 L / min (30 GPM).
Every Atlas Scientific flow meter comes with a Atlas Scientific flow connector board, that allows the user to easily connect the flow meter to our EZO™ Embedded Flow Meter Totalizer.
Laminar flow can be thought of as the opposite of turbulent flow. In order for the flow meter to work properly liquid entering the flow meter should have a streamlined laminar flow. Achieving laminar flow is not hard to do. Simply allow for 20cm of straight pipe just before the liquid enters the flow meter.
Shipping & Returns
It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.
After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns
The 3/4" Flow Meter comes with:
