The 1/4” Paddle Flow Meter is an extremely accurate flow meter of low complexity.
This flow meter requires specific timing and calculations to provide meaningful data.

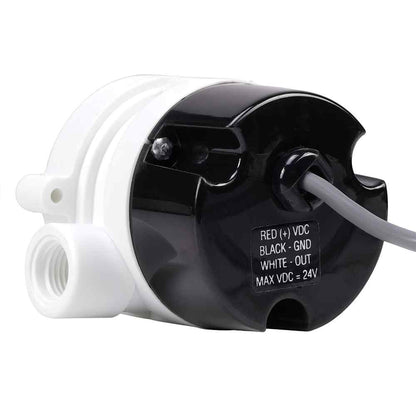

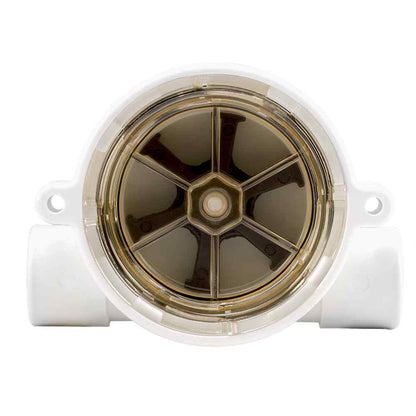

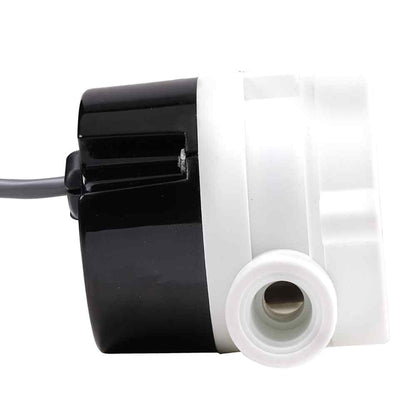

The Atlas Scientific 1/4” female NPT magnetic paddle wheel flow meter has been designed within a compact inline housing and provides accurate flow rate measurements with built-in visual confirmation. This flow meter is intended for medium-to-low flow ranges from 378 mL/min (0.1GPM) up to 19 L / min (5 GPM).

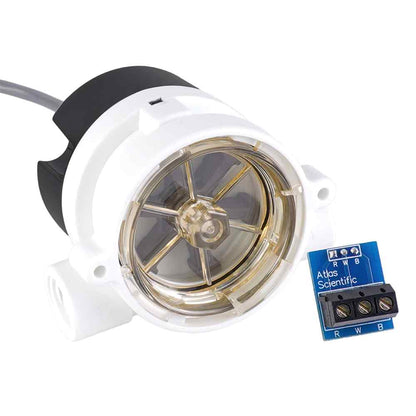

Every Atlas Scientific flow meter comes with a Atlas Scientific flow connector board, that allows the user to easily connect the flow meter to our EZO™ Embedded Flow Meter Totalizer.

Paddel Wheel Flow Meter is an extremely accurate flow meter of moderate complexity. This flow meter requires specific timing and calculations to provide meaningful data. Laminar flow can be thought of as the opposite of turbulent flow. In order for the flow meter to work properly liquid entering the flow meter should have a streamlined laminar flow. Achieving laminar flow is not hard to do. Simply allow for 20cm of straight pipe just before the liquid enters the flow meter.
