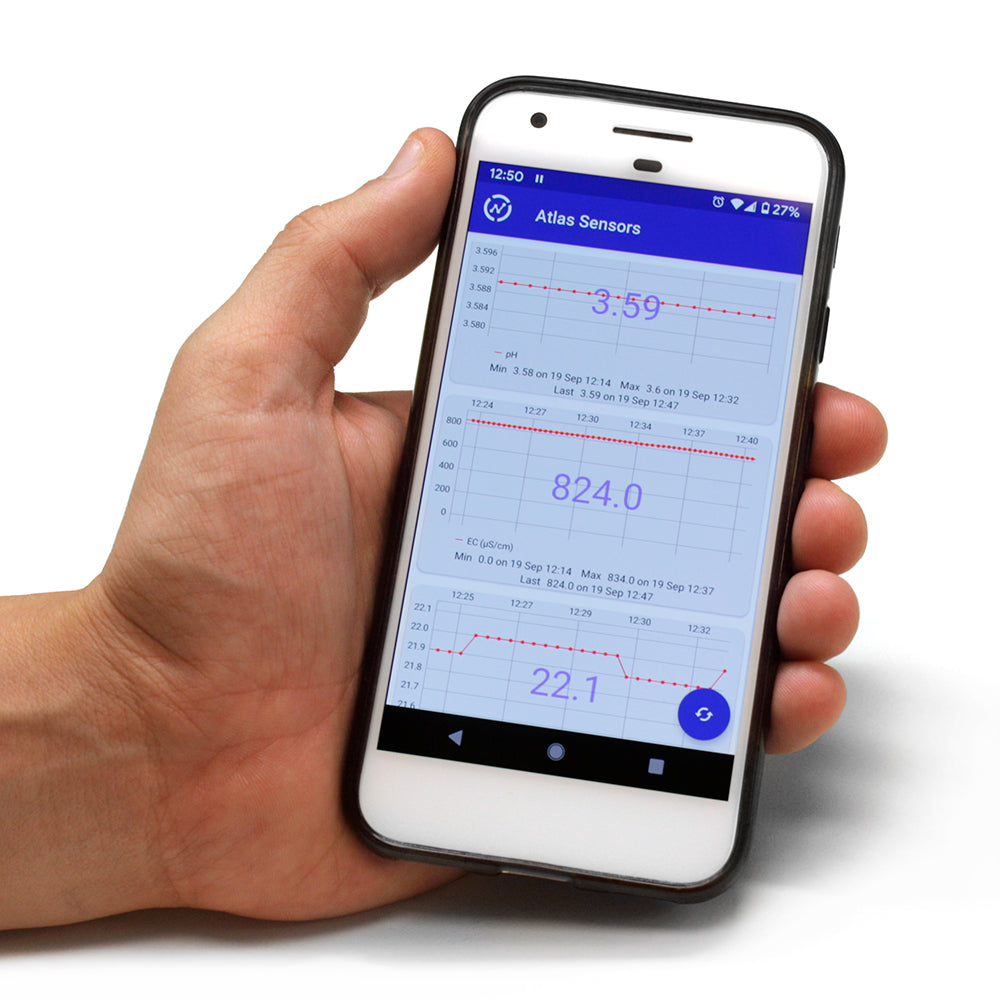

The Atlas Scientific Wi-Fi Hydroponics Kit reads pH, Conductivity, and Temperature. The pH and Conductivity readings are automatically temperature compensated. Measurements are now displayed on the microcontroller’s screen and uploaded to ThingSpeak, enabling remote monitoring from a phone, tablet, or PC. The code and setup instructions are available in the download section of this page.

• No soldering required

• No programming necessary

• Automatically uploads data to ThingSpeak cloud

• Access to data on phone, tablet, or PC

• Auto temperature compensation for pH and Conductivity

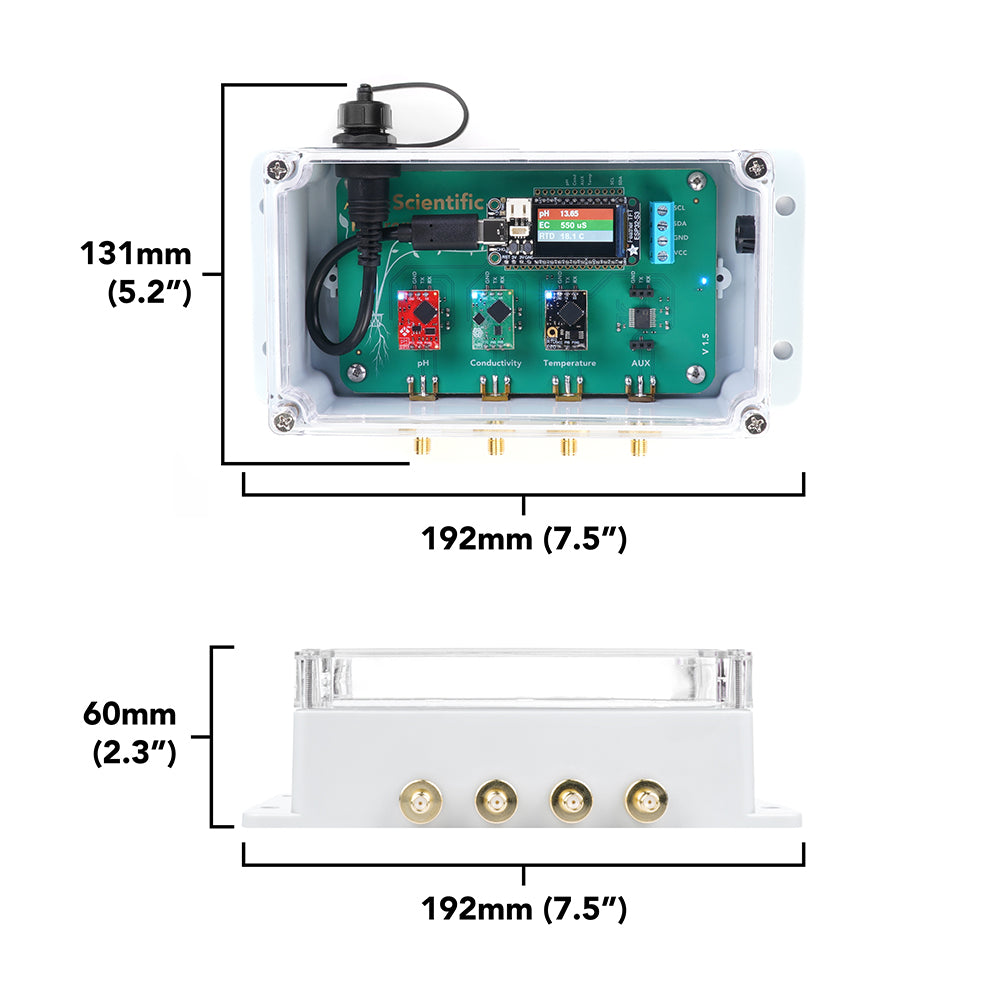

• Pre-drilled / wall mountable case with a clear top

• pH range 0 − 14 / resolution 0.01

• Conductivity range 0 − 200K / resolution 1μS

• Operating voltage: 5V

• Current consumption : 310mA at 5V

• Three electrically isolated slots (pH, Conductivity, and AUX)

• One auxiliary (AUX) slot for an additional sensor

• Calibration solutions included.

• IP64 (dust and water splashproof)

• I2C mode only

It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.

After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns

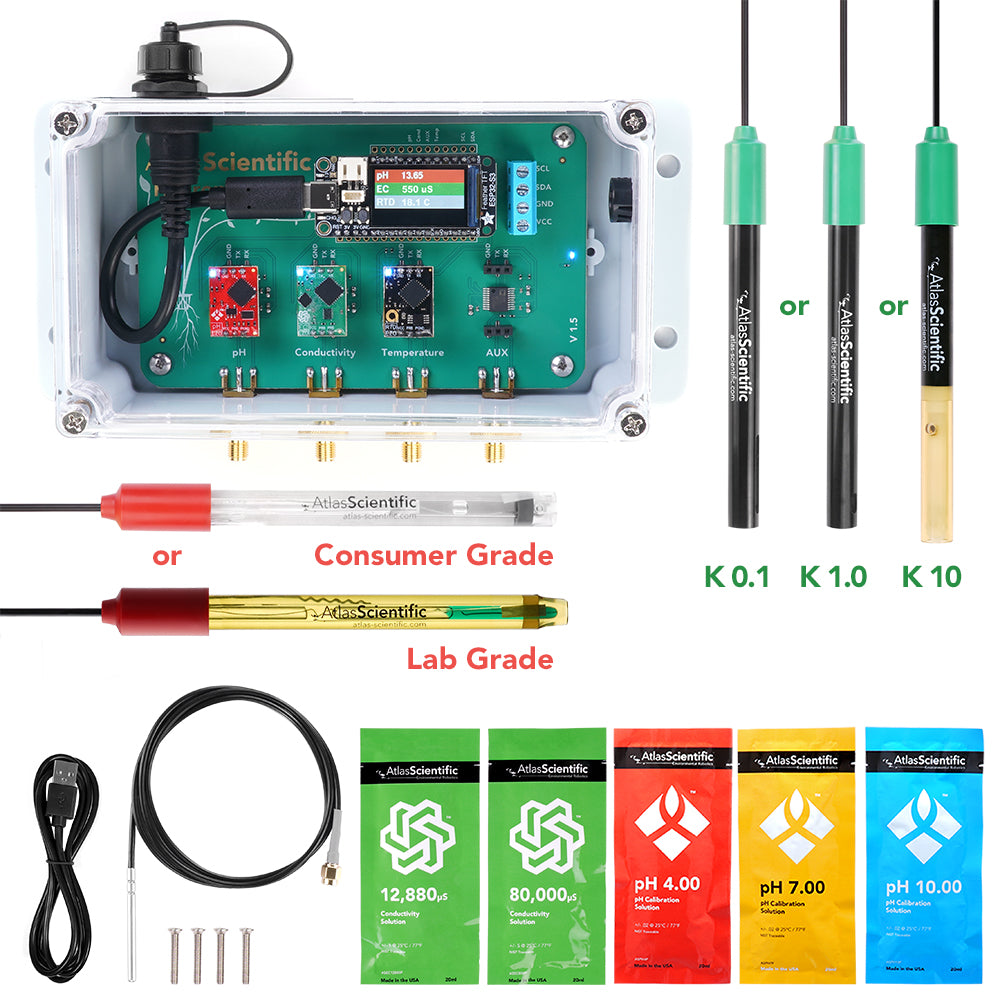

The Wi-Fi Hydroponics Kit comes with:

1x Enclosure with hardware assembled within

1x EZO pH circuit
1x EZO Conductivity circuit

1x EZO RTD Temperature circuit
1x pH calibration solutions
1x Conductivity calibration solutions
1x USB C cable

You have to add your probes below !

Datasheets

• Wi-Fi Hydropnics Kit Setup Guide

Documents

• How To Add Dissolved Oxygen To The Hydroponics Kit
• Connecting probes into a pipe
• RoHS Certificate
• CE Certificate
• CSA Certificate

Thingspeak Code

• Wi-Fi Hydropnics Kit - Thingspeak code
