Milone Technologies

0-5V DC Resistance to Voltage Module

0-5V DC Resistance to Voltage Module

Normale prijs €33.95 EUR
Normale prijs Aanbiedingsprijs €33.95 EUR
Aanbieding Uitverkocht
Verzendkosten worden berekend bij de checkout.

1 in stock

Description

1x 0-5V DC Resistance to Voltage Module manufactured by Milone Technologies.




Specifications

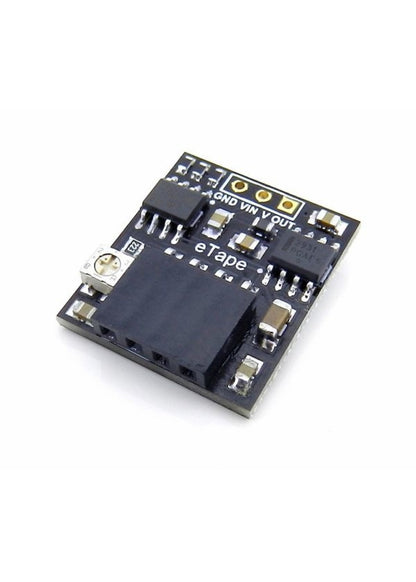

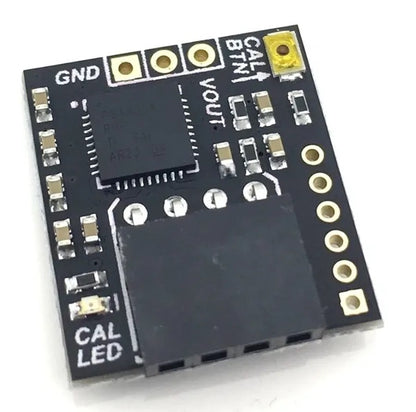

The linear resistance to voltage module was designed for the eTape liquid level sensors. The eTape sensor plugs directly into the four-pin header on the module.  The module is designed to convert the variable resistance output of the eTape liquid level sensor to a linear output voltage between ~0 volts to ~5 volts DC.  Applying the output voltage of the module to a microcontroller, PLC or other voltage monitoring device can more accurately measure and monitor the liquid level output of the eTape sensor. The module is calibrated using a five-point calibration process at 0%, 25%, 50%, 75% and 100% of full scale.  See the datasheet for calibration instructions.

Shipping & Returns

It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.

After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns

What's Included?

The 0-5V DC Resistance to Voltage Module comes with:



• 1x 0-5V DC Resistance to Voltage Module

Documentation

0-5VDC Resistance to Voltage Module



0-5V Module
