CONTROLLINO MINI pure
CONTROLLINO MINI pure
0 in stock
Impossibile caricare la disponibilità di ritiro
Description

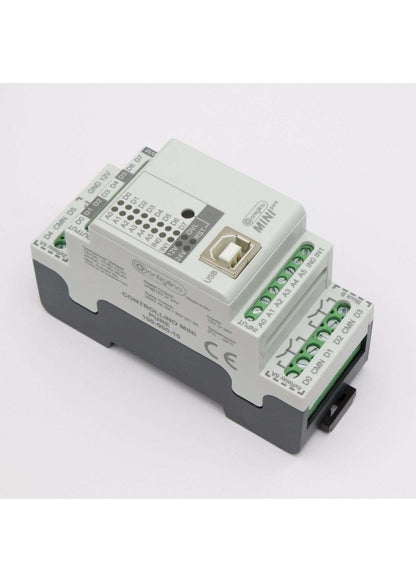

CONTROLLINO MINI pure
The MINI is the smallest child in our CONTROLLINO family. But no worries – it’s still a big boy when it comes to the number of inputs and outputs (8 each). The incredible size to I/O ratio makes the MINI one of the most compact and versatile PLCs on the market.
Pinheader protection caps included!
Specifications
| Features | MINI |
| 5V Pin Headers | No |
| Analog/Digital Inputs | 6 (2x only Analog) |
| Only Digital Inputs | 2 |
| Analog 0-10V Inputs | No |
| Interrupt Inputs | 2 |
| Digital 2A Outputs | 8 (3 PWM) |
| Analog 0-10V Outputs | No |
| Relay Outputs | 6 (Parallel to Digital Outputs) |
| Serial TTL Interface | No |
| I²C Interface | No |
| SPI Interface | No |
| RS485 Interface | No |
| RTC | 1 |
Shipping & Returns
It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.
After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns
What's Included?
This product includes 1x CONTROLLINO MINI pure
Documentation
