Atlas Scientific
3/8" Flow Meter
3/8" Flow Meter
Prezzo di listino
€135.95 EUR
Prezzo di listino
Prezzo scontato
€135.95 EUR
Prezzo unitario
per
Spese di spedizione calcolate al check-out.
3 in stock
Impossibile caricare la disponibilità di ritiro
Description

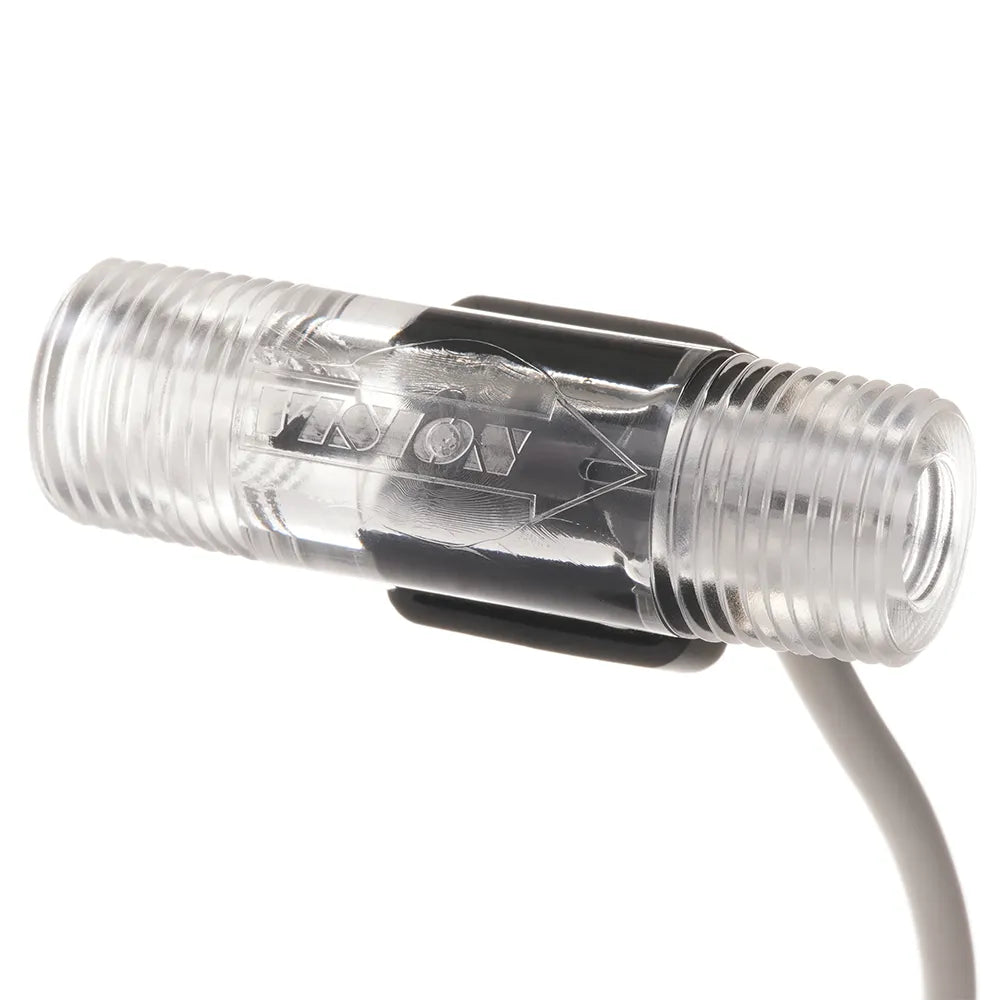

The 3/8” Turbine Flow Meter is an extremely accurate flow meter of low complexity.
This flow meter requires specific timing and calculations to provide meaningful data.
Specifications
| Reads | Total flow and flow rate |
| Range | 760 ml/min – 7.6 L/min |
| Accuracy | +/– 2% |

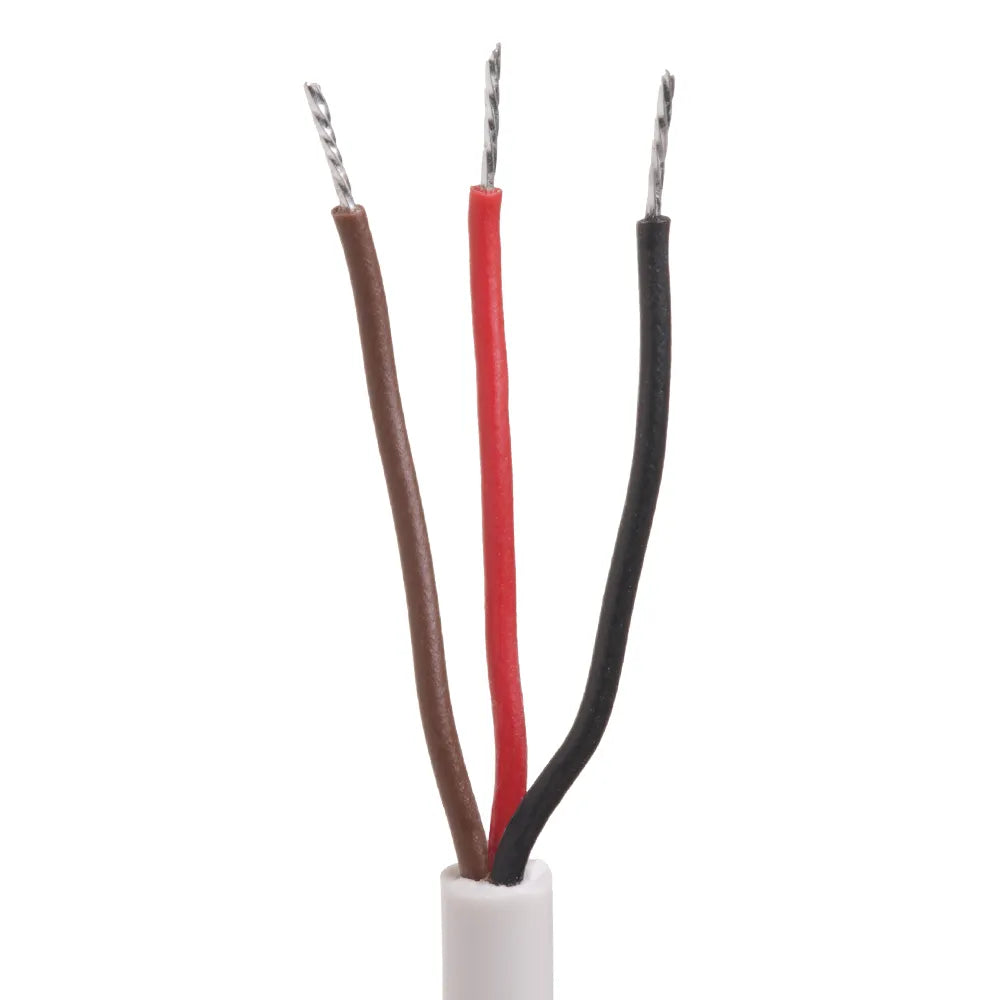

| Connector | Tinned leads |
| Thread | 3/8” Male NPT |
| Max pressure | 200 PSI |
| Temperature range °C | -20 − 80 °C |
| Max viscosity | 81 SSU |
| Cable length | 86cm (33.8″) |
| Voltage | 3.3V – 24 VDC |
| Life expectancy | ~10 years |
Shipping & Returns
It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.
After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns
What's Included?
1x 3/8" Flow Meter
Documentation
