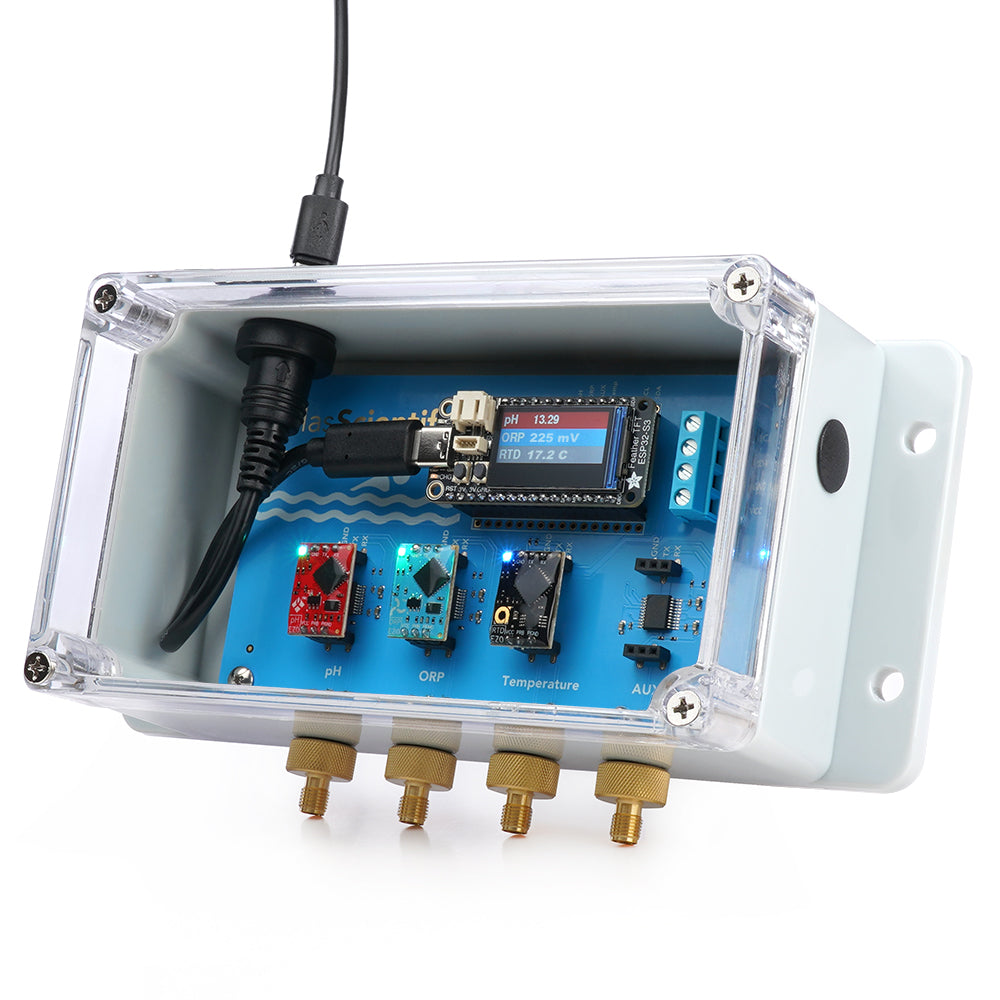

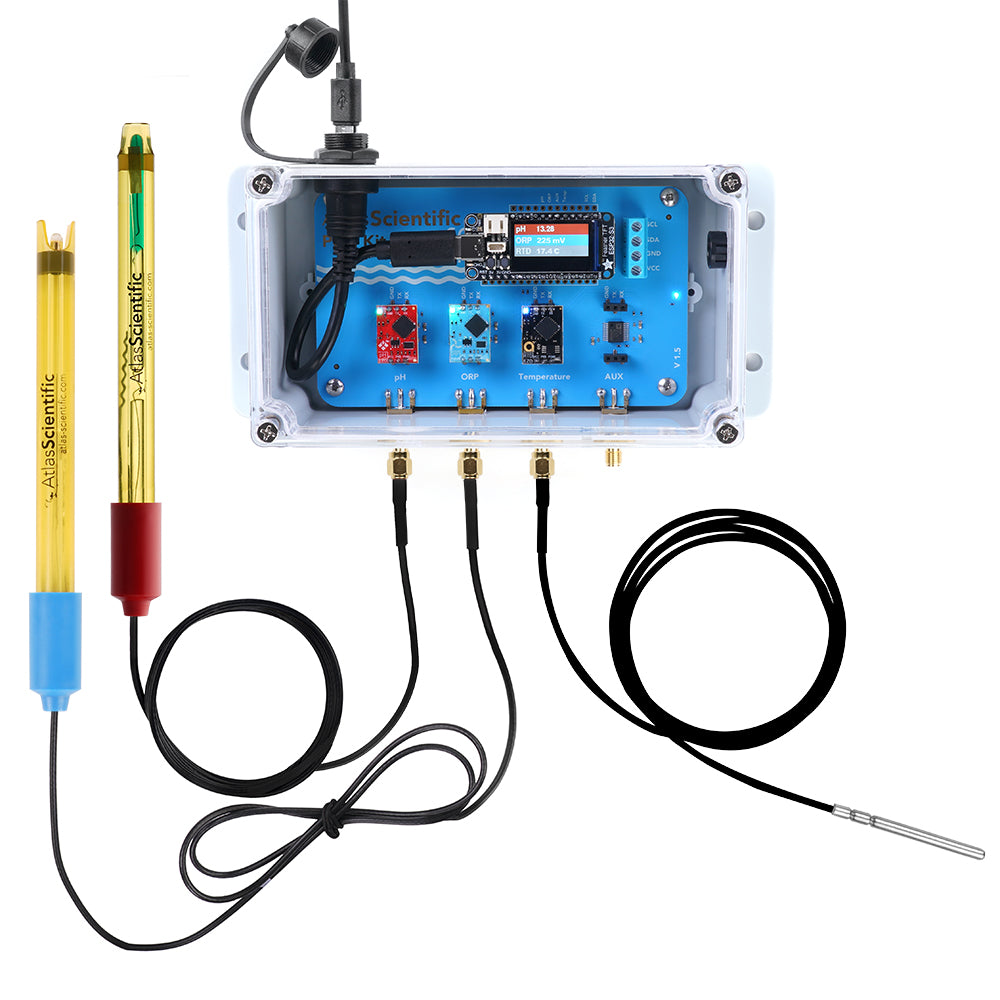

The Atlas Scientific Wi-Fi Pool Kit reads pH, ORP, and Temperature. The pH readings are automatically temperature compensated. Measurements are now displayed on the microcontroller’s screen and uploaded to ThingSpeak, enabling remote monitoring from a phone, tablet, or PC. The code and setup instructions are available in the download section of this page.

• No soldering required

• No programming necessary

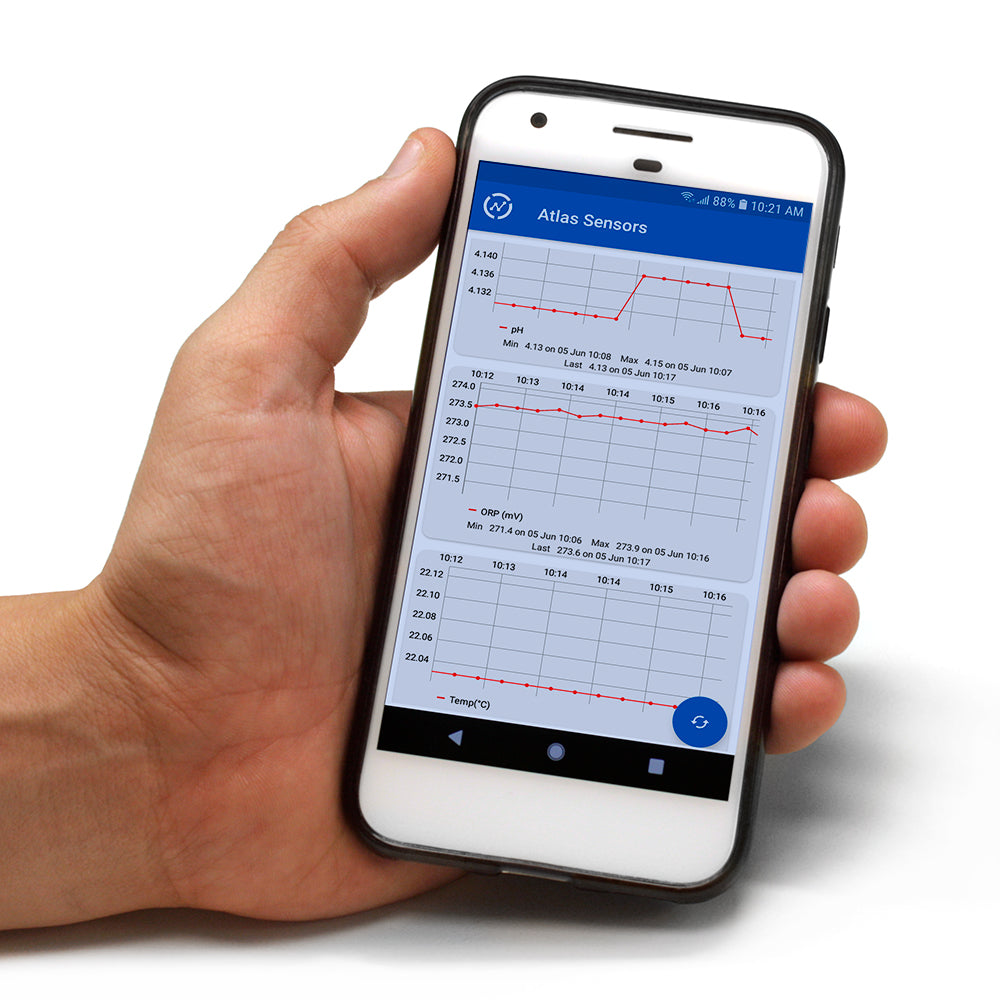

• Automatically uploads data to ThingSpeak cloud

• Access to data on phone, tablet or PC

• Auto temperature compensation for pH

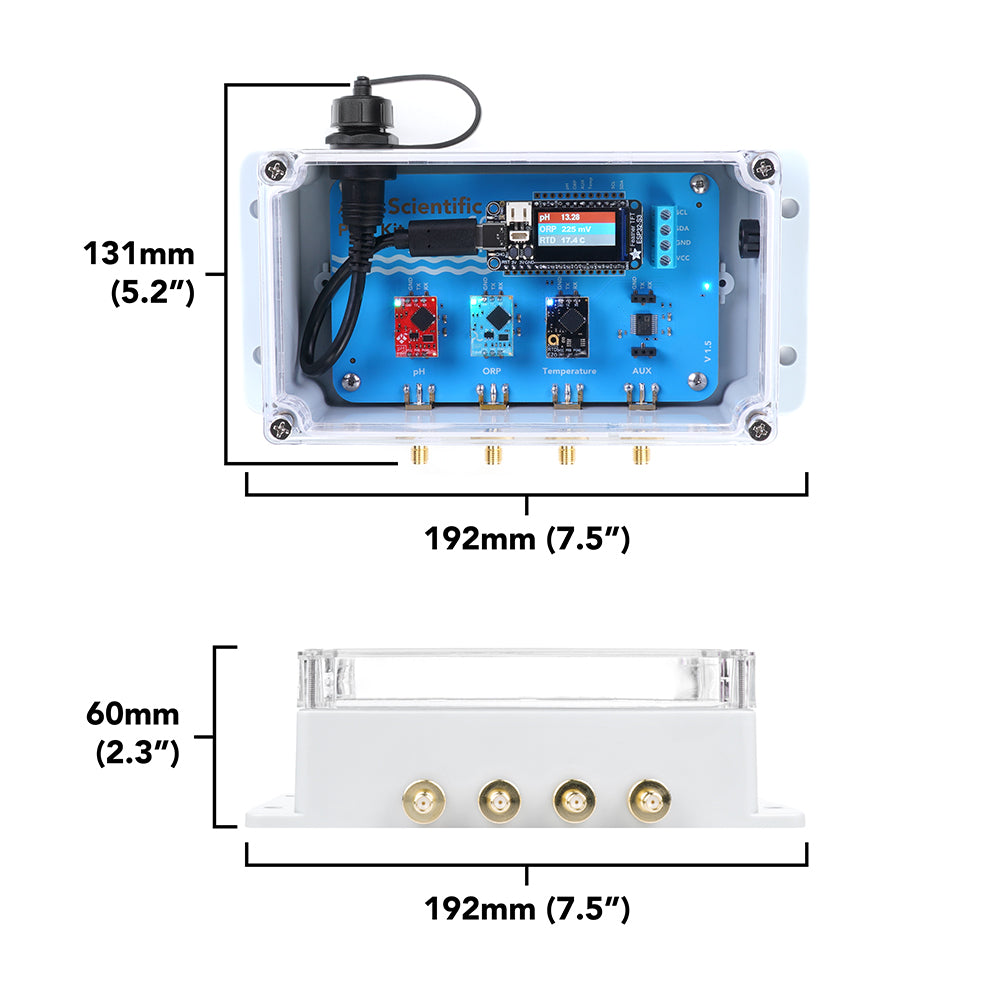

• Pre-drilled / wall mountable case with clear top

• pH range 0 − 14 / resolution 0.01

• ORP range +/-1100mV

• Operating voltage : 5V

• Current consumption : 280mA at 5V

• Three electrically isolated slots (pH, ORP and AUX)

• One auxiliary (AUX) slot for an additional sensor

• Calibration solutions included

• IP64 (dust and water splash proof)

• I2C mode only

It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.

After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns

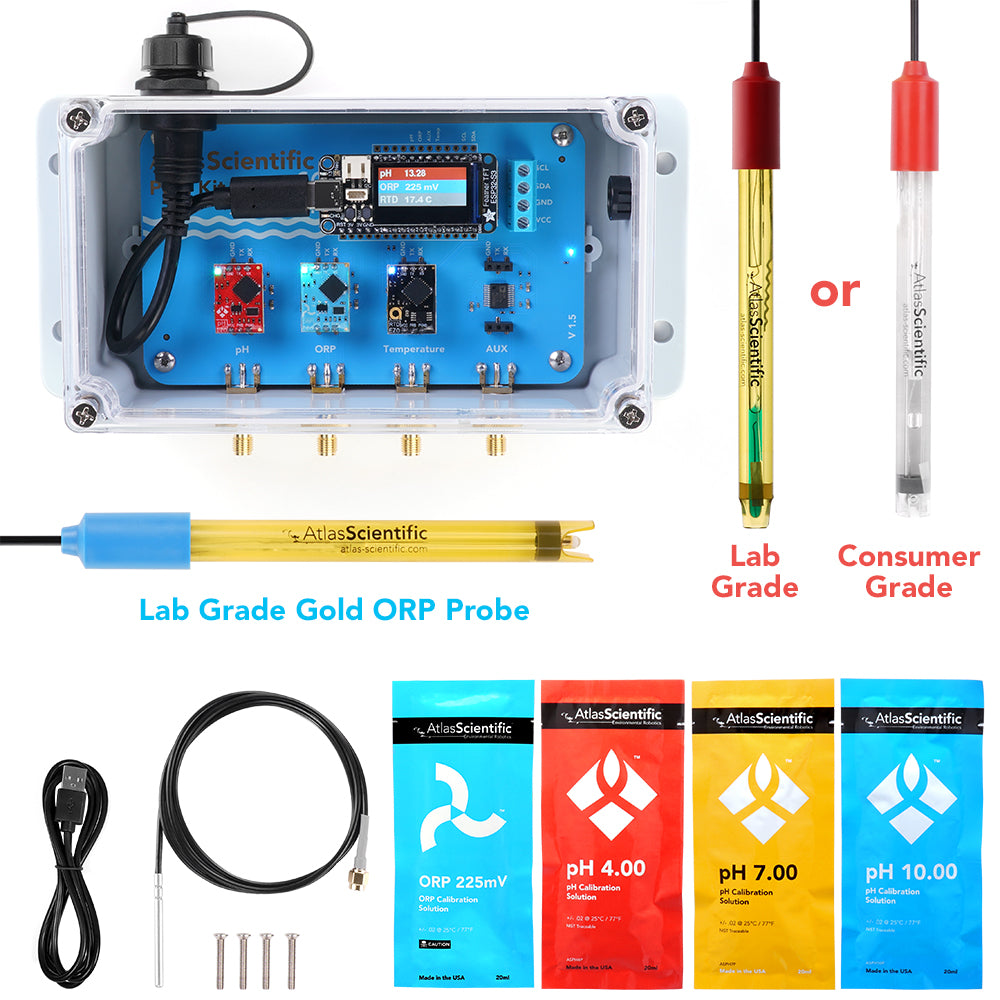

The Wi-Fi Pool Kit comes with:

1x EZO pH circuit
1x EZO ORP circuit
1x EZO RTD Temperature circuit
1x pH calibration solution

1x ORP calibration solution
1x USB C cable

You have to add your probes below!

Datasheets

• Wi-Fi Pool Kit Setup Guide

Documents

• Connecting probes into a pipe
• RoHS Certificate
• CE Certificate
• CSA Certificate

Thingspeak Code

• Wi-Fi Pool Kit - Thingspeak code
