ENV-CO2™ Environmental Grade CO2 Sensor
ENV-CO2™ Environmental Grade CO2 Sensor
Description
The ENV-CO2™ Environmental Grade CO2 Sensor makes it easy to get accurate, reliable CO2 readings in any environment. It’s factory calibrated and ready to go right out of the box, measuring from 400 to 5,000 ppm with precision you can trust. Built to last for years, it runs on low power and connects easily to most systems using UART or I2C. Whether you’re tracking air quality, monitoring greenhouses, or running research projects, the ENV-CO2™ gives you dependable results every second.
Specifications
| Reads | Gaseous CO2 |
| Range | 400 − 5,000 ppm |
| Calibration | Self calibration or user calibration |
| Pressure | 70.0 – 120.0 kPa (0.7 – 1.2 atm) |
| Reading time | 1 reading per second |
| Resolution | +/- (40 ppm + 5% of reading) |
| Response time | T63: 60 seconds |
| Cable length | 1 meter |
| Connector | 5 lead data cable |
| Data protocol | UART & I2C |
| Default I2C address | 113 (0x71) |
| Data format | ASCII |
| Operating voltage | 3.3V − 5V |
| Life expectancy | ~8 years |
Shipping & Returns
It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.
After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns
What's Included?
The ENV-CO2™ Environmental Grade CO2 Sensor comes with:

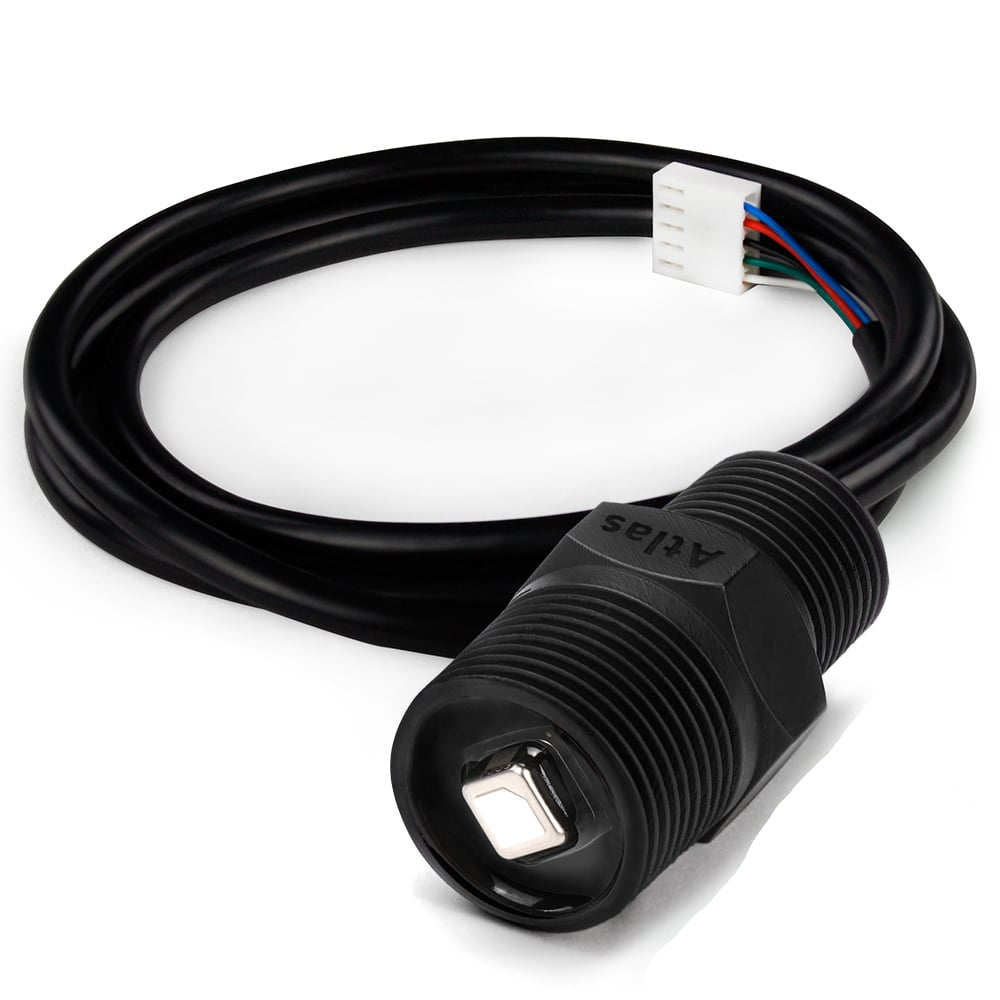

• 1x embedded carbon dioxide sensor

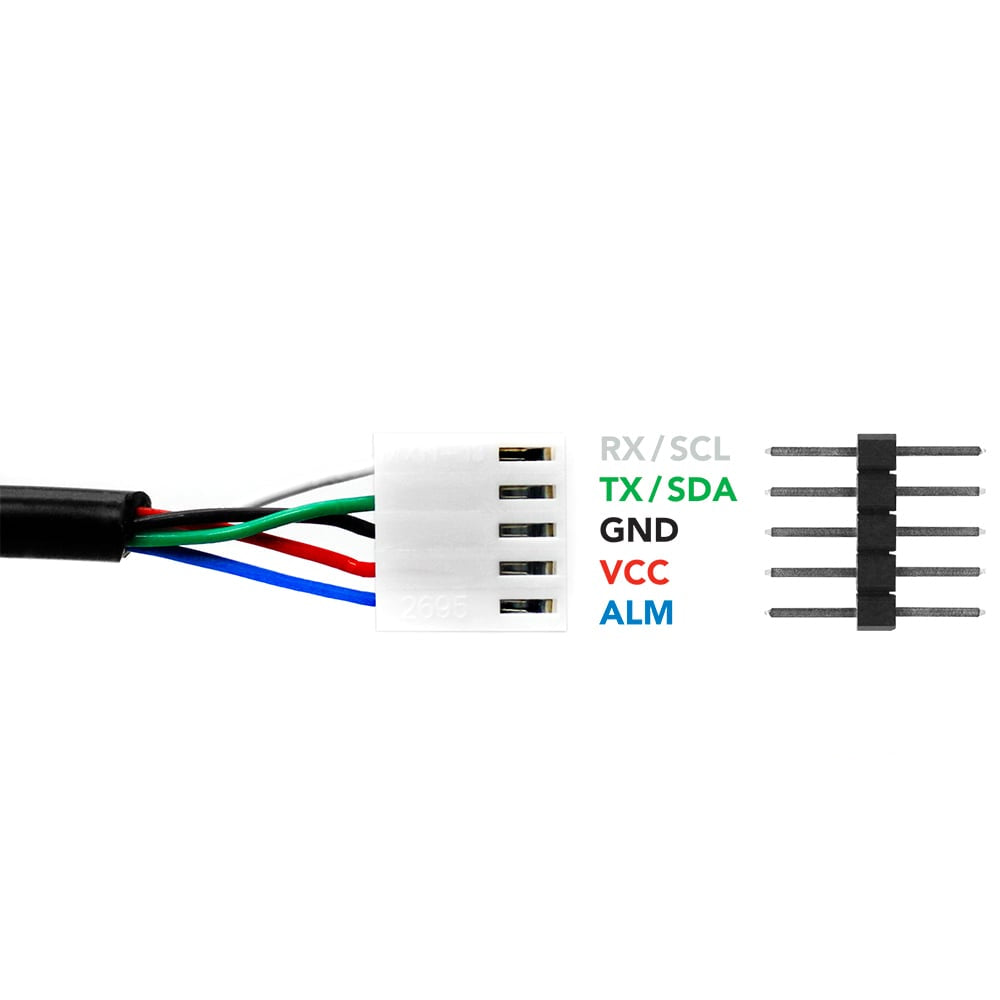

• 1x data cable with 5 pin male header

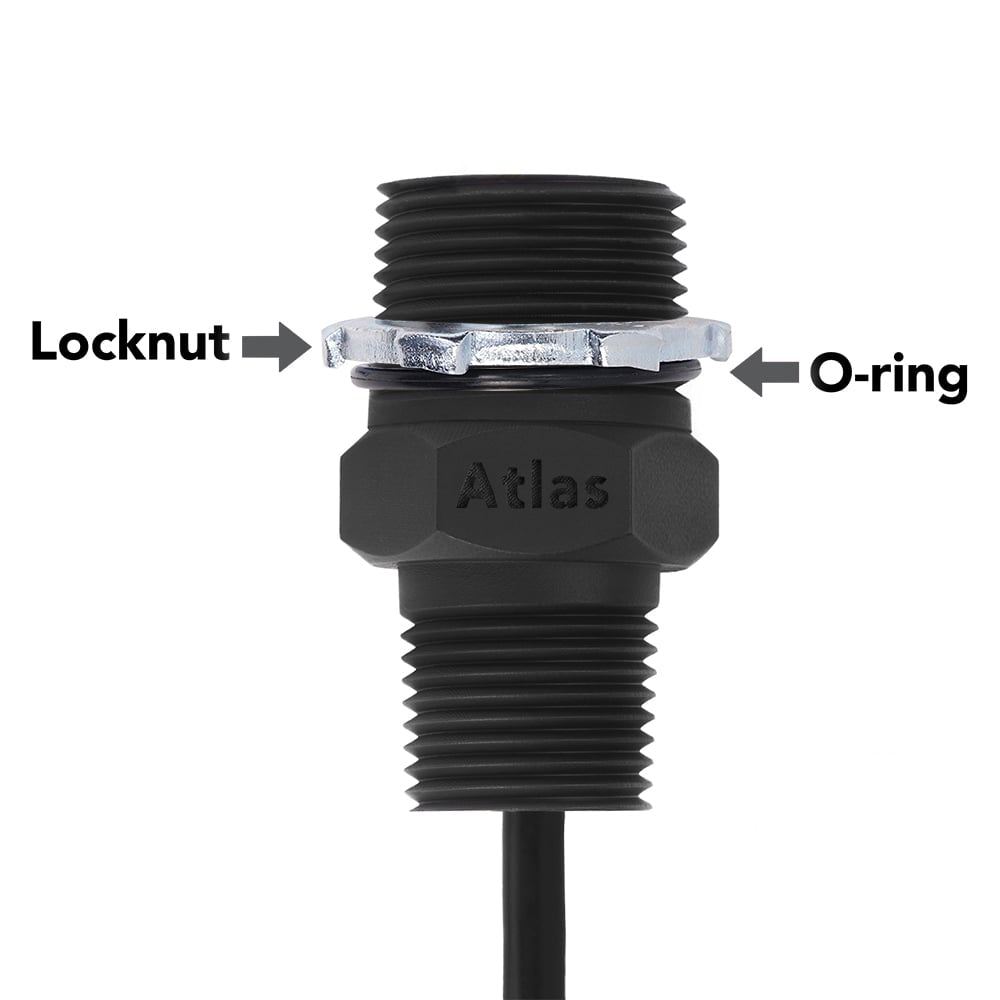

• 1x Locknut & O-ring
Documentation
Datasheets
Documents
Downloads
Basic Sample Code
- Arduino Uno Sample Code
- Arduino Mega / Giga Sample Code
- Arduino I2C Sample Code
- Raspberry Pi Sample Code (I2C)
Library
