PT-1000 Temperature Probe
PT-1000 Temperature Probe
20 in stock
No se pudo cargar la disponibilidad de retiro
Description

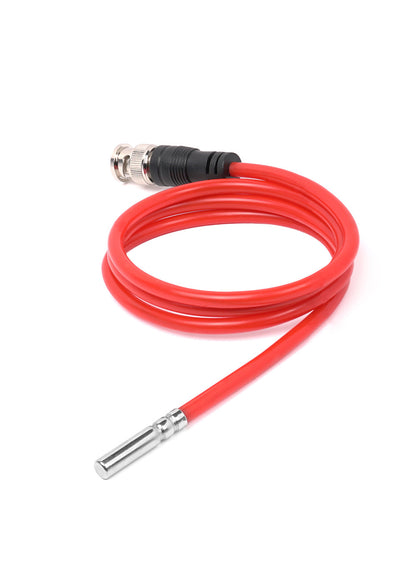

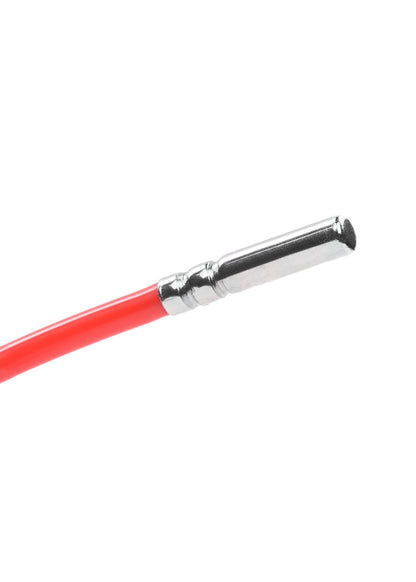

The PT-1000 probe is a Class-A high purity platinum RTD temperature probe with a thick silicone rubber cable with BNC connector. 81 cm.
The PT-1000 temperature probe is a resistance type thermometer. Where PT stands for platinum and 1000 is the measured resistance of the probe at 0˚C in ohms (1k at 0˚C). As the temperature changes the resistance of the platinum changes.
Specifications
| Reads | Temperature |
| Probe type | Class A platinum, RTD |
| Range | -200 ̊C to 850 ̊C |
| Accuracy | +/- (0.15 + (0.002*t)) |
| Reaction Time | 90% in 13s |
| Cable length | 81cm (2.6’) |

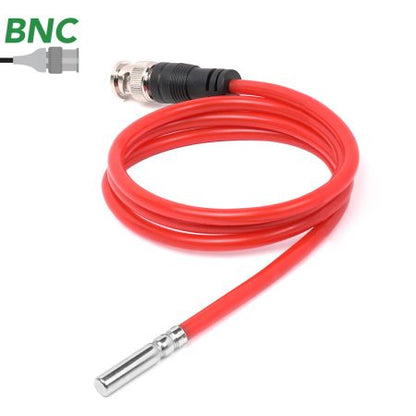

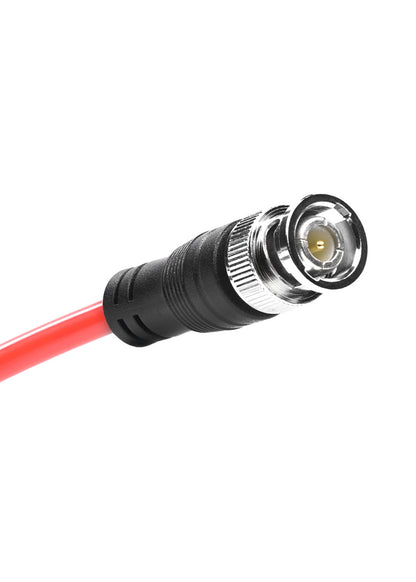

| Connector | Male BNC / Male SMA (optional) |
| Output | Resistance (Analog) |
| Life expectancy | 15 years |
Shipping & Returns
It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.
After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns
What's Included?
The PT-1000 Temperature Probe comes with:
• 1x PT-1000 Temperature Probe
Documentation
