Atlas Scientific

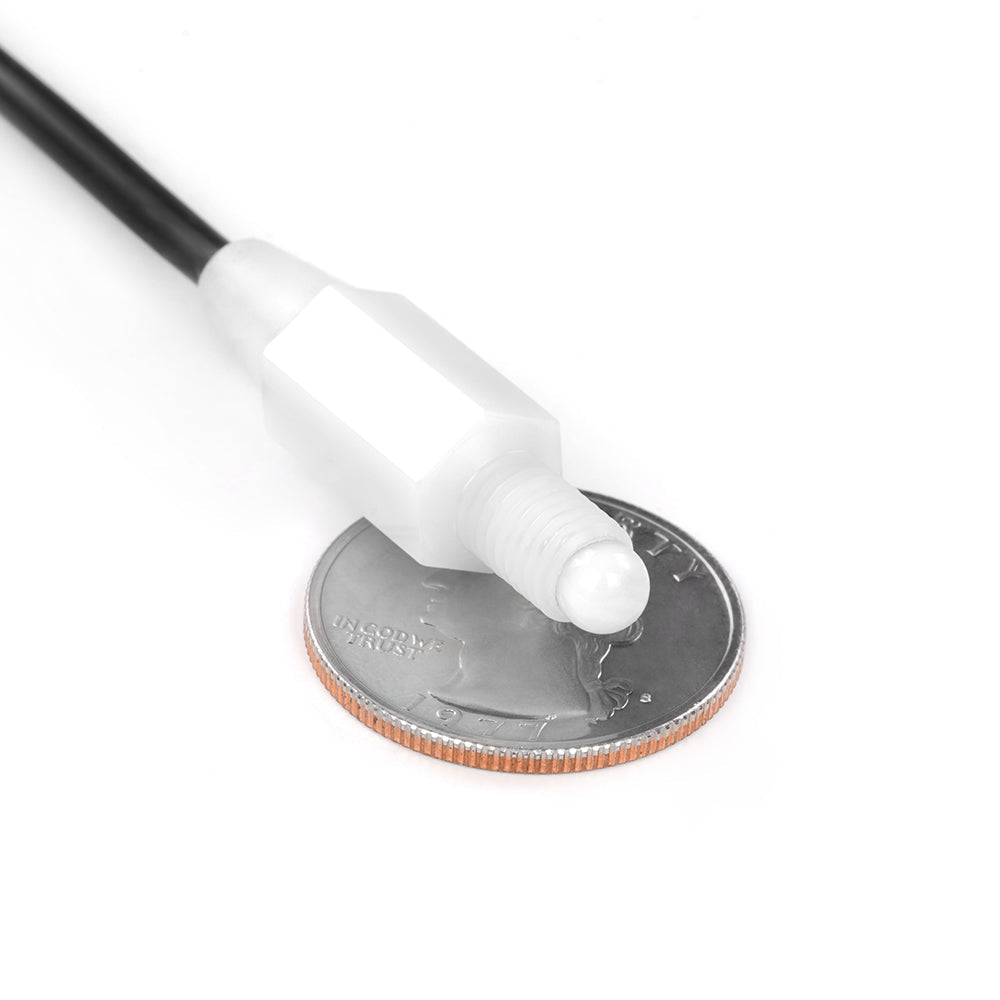

Micro PT-1000 Temperature probe
Micro PT-1000 Temperature probe
1 in stock
Description
The PT-1000 Temperature Probe was designed for microfluidics and other small space applications. This Temperature probe offers the same accuracy and stability as our full size PT-1000 temperature probe.
The Atlas Scientific Micro PT-1000 Temperature Probe was designed for microfluidics and other small space applications. This Temperature probe offers the same accuracy and stability as our full size PT-1000 temperature probe. Internally, the probe is using a class A platinum RTD sensing element.

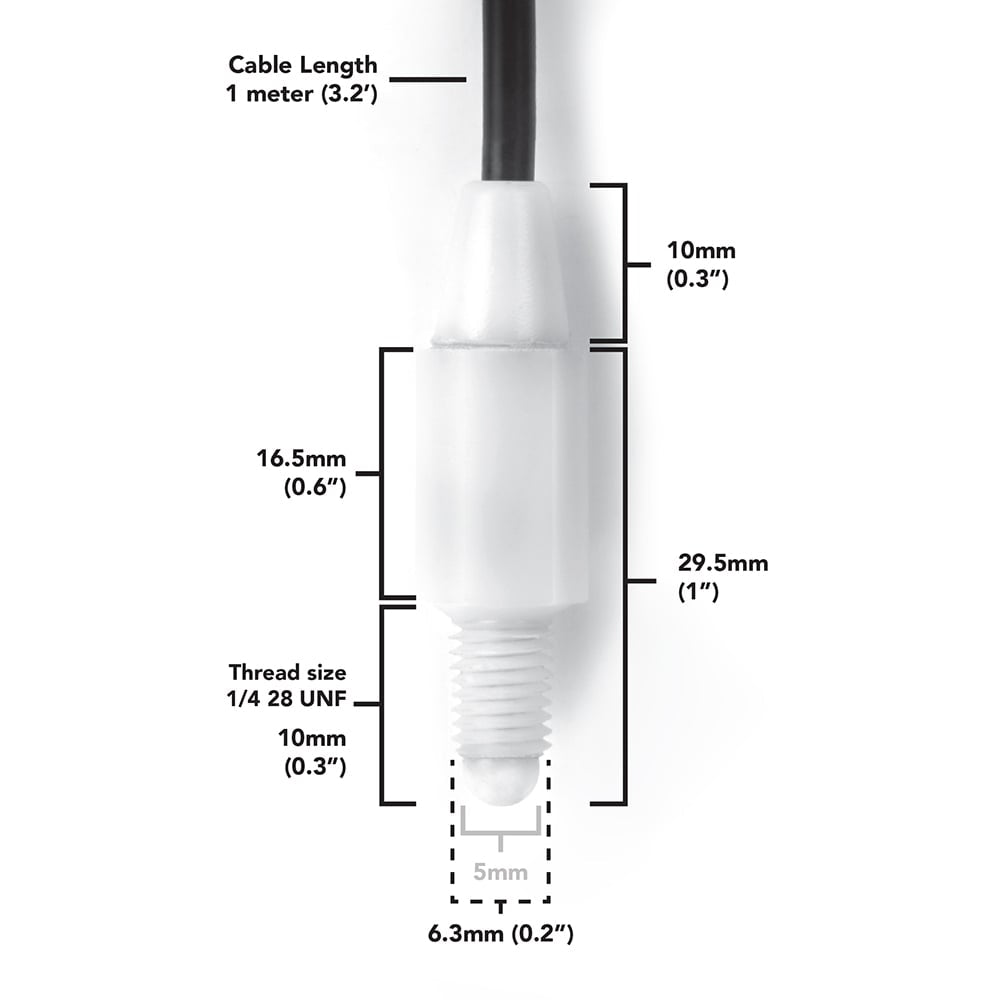

Specifications
Reads | Temperature |
Probe type | Class A platinum, RTD |
Range | -200 ̊C to 200 ̊C |
Accuracy | +/- (0.15 + (0.002*t)) |
Reaction Time | 90% in 13s |
Cable length | 61cm (2′) |
Connector | Male SMA |
Output | Resistance (Analog) |
Life expectancy | 15 years |
Shipping & Returns
It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.
After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns
What's Included?

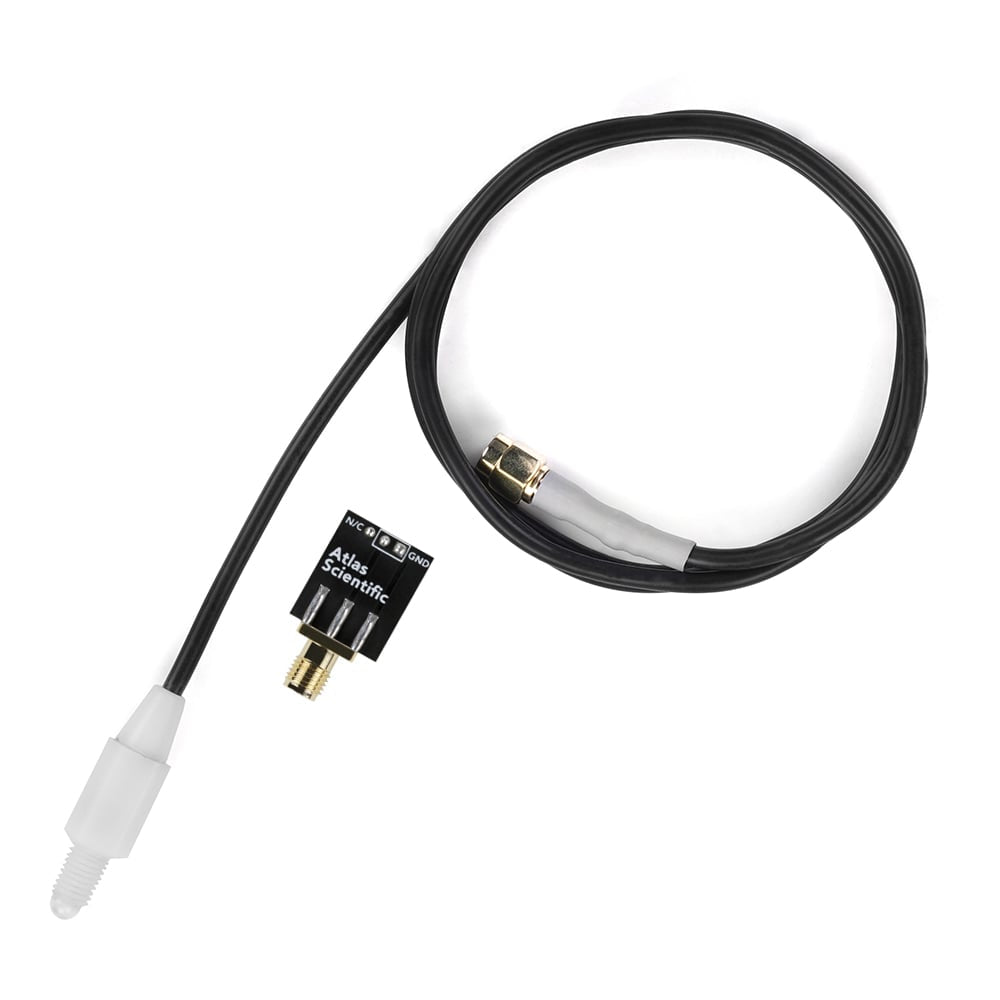

The Micro PT-1000 Temperature probe comes with:
• 1x Micro PT-1000 Probe

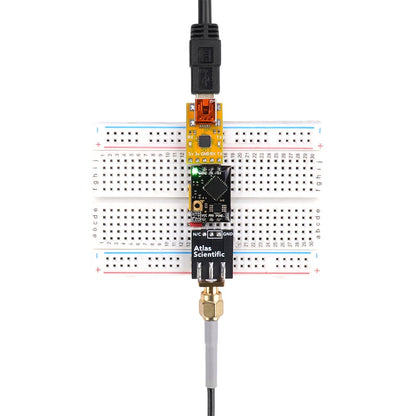

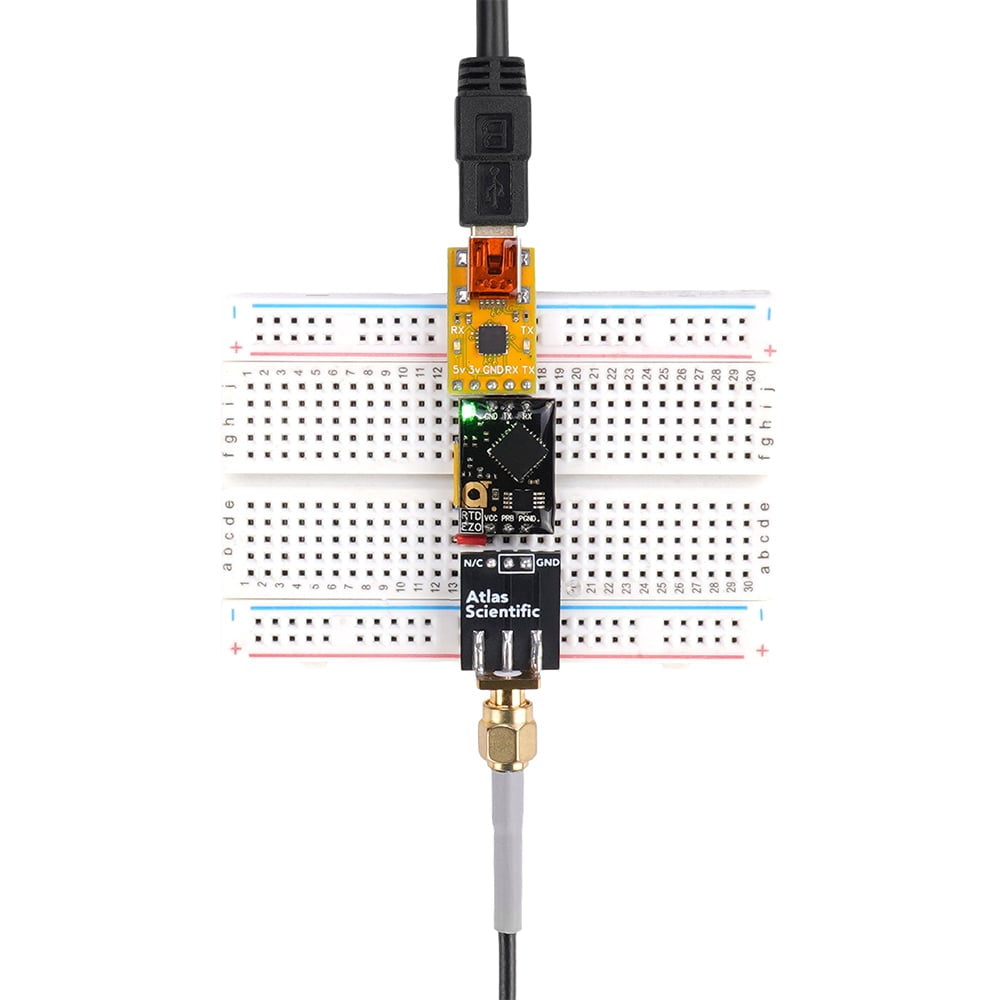

• 1x SMA Breakout Board
