EZO Complete-Dissolved Oxygen™
EZO Complete-Dissolved Oxygen™
6 in stock
No se pudo cargar la disponibilidad de retiro
Description

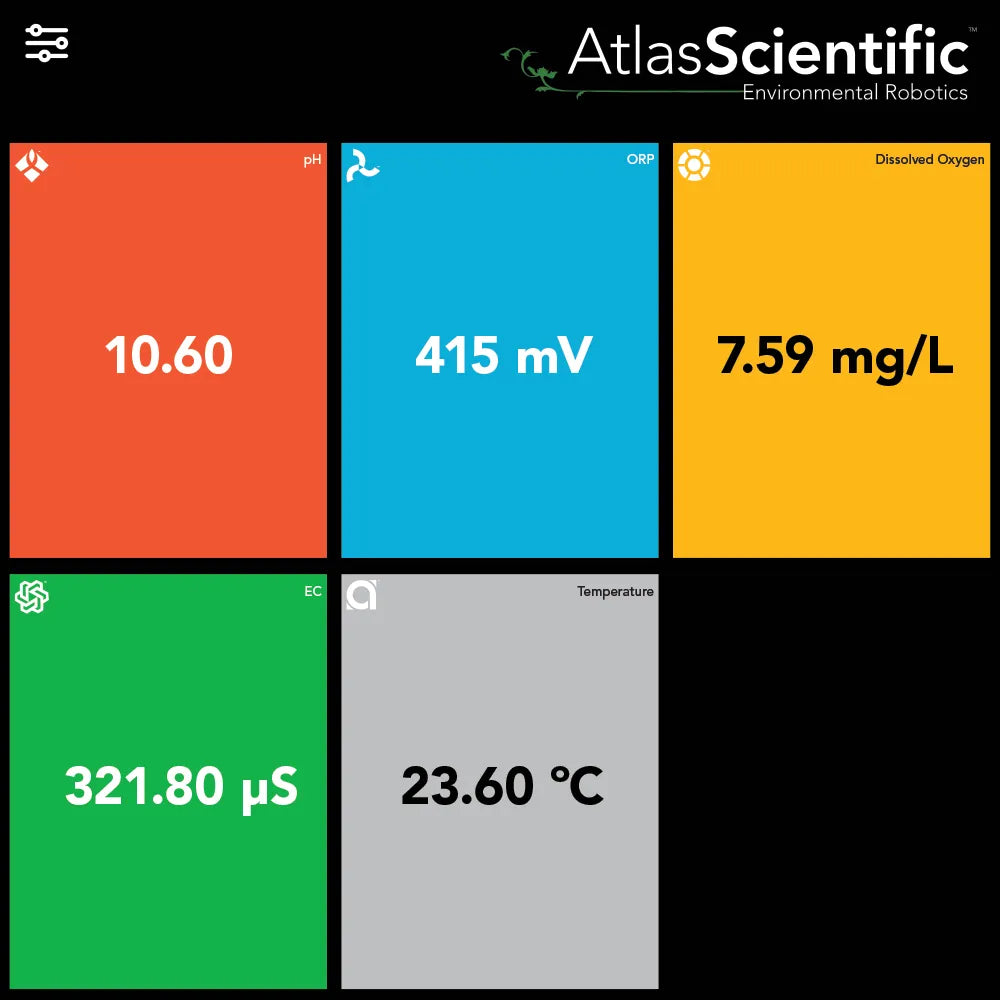

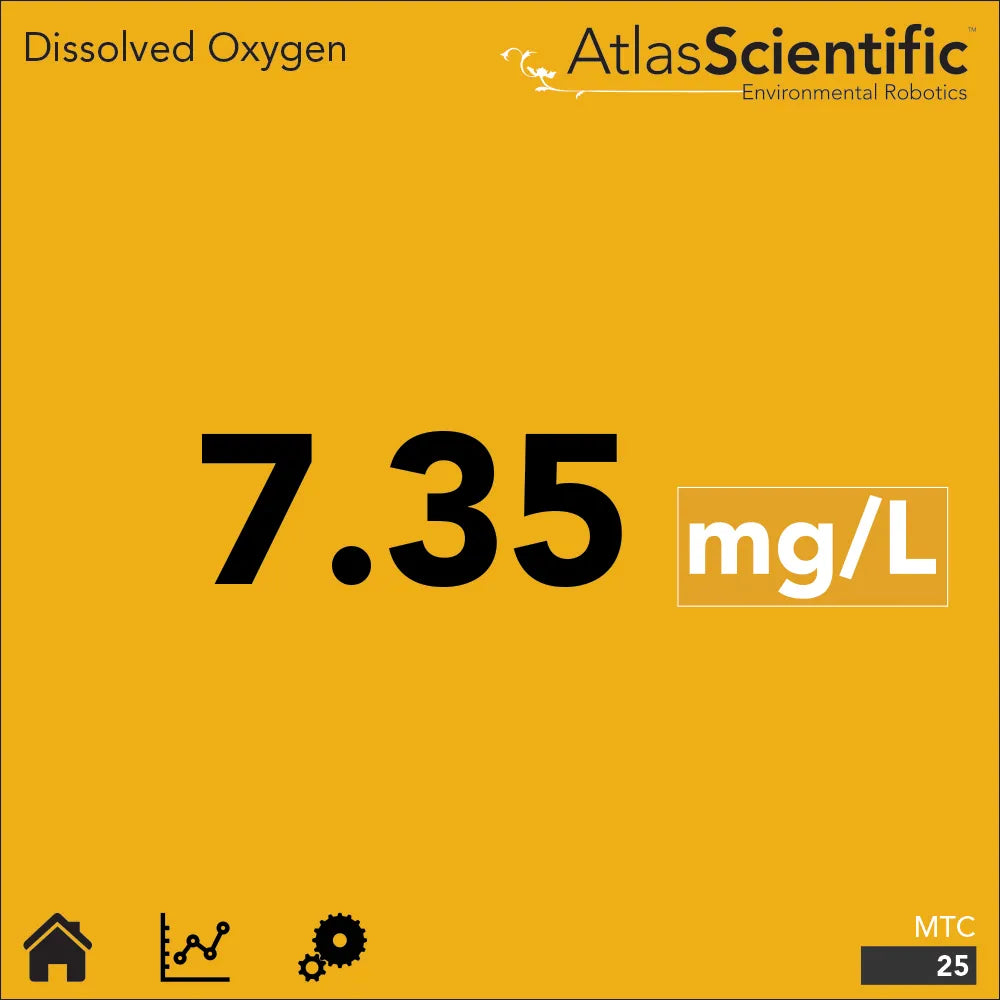

The EZO-Complete USB Dissolved Oxygen meter makes building a custom monitoring system easy. Simply connect the EZO-Complete to a PC and install the free Atlas Desktop software. Connect multiple EZO-Complete Dissolved Oxygen modules to read D.O. from multiple locations. Embedded systems engineers can use EZO-Complete Dissolved Oxygen with any USB-enabled microcontroller. EZO-Complete will create a virtual comport and is controlled using simple serial strings.
Specifications
| Reads | Dissolved Oxygen |
| Range | 0.00 − 100+ mg/L 0 − 350% saturation |
| Resolution | .01 |
| Accuracy | +/– 0.05 mg/L |
| Response time | 1 reading per sec |
| Supported probes | Any galvanic probe |
| Calibration | 1 or 2 point |
| Temp. compensation | Yes |
| Salinity compensation | Yes |
| Pressure compensation | Yes |
| International standard | ISO 5814 compliant (determination of dissolved oxygen) |

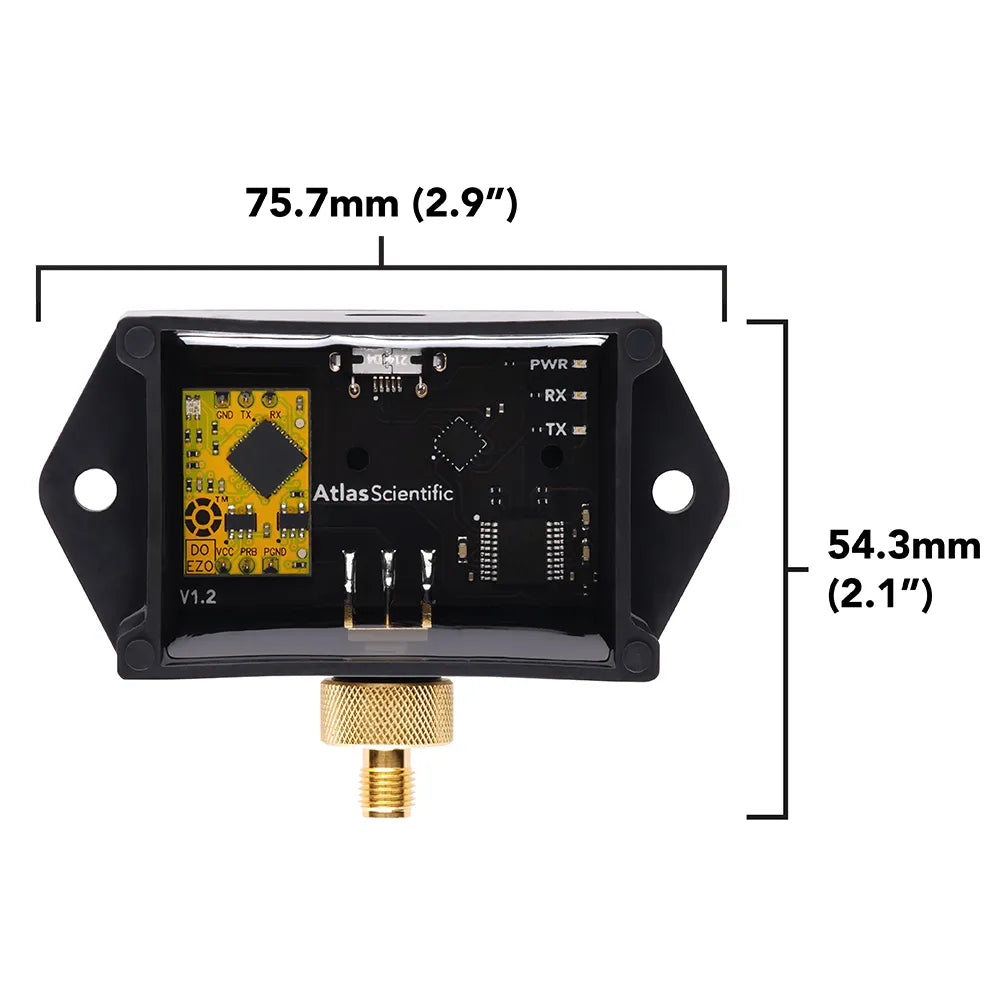

| Dimensions | 75.7mm x 54.3mm (2.9″ x 2.1″) |
| Weight | ~54 grams |
| Data protocol | Serial strings through FTDI virtual comport |
| Data format | ASCII |
| Operating voltage | 5V USB |
Shipping & Returns
It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.
After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns
What's Included?
The EZO Complete-Dissolved Oxygen™ comes with:
Documentation
Certificates
Datasheet for Engineers
Instructions for use with Atlas Desktop
Tools
