CONTROLLINO MEGA
CONTROLLINO MEGA
0 in stock
No se pudo cargar la disponibilidad de retiro
Description

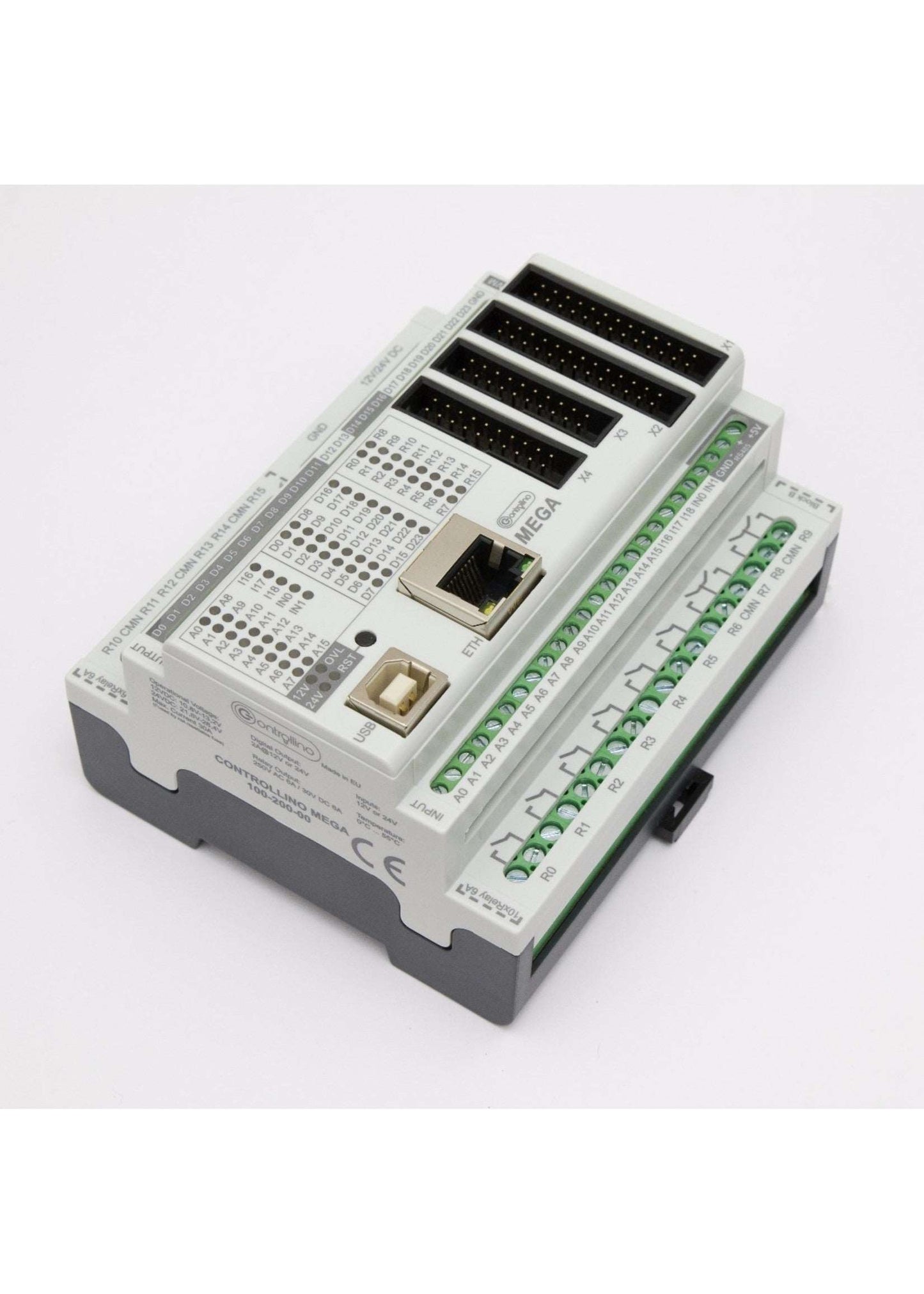

CONTROLLINO MEGA
The MEGA is the giant in our CONTROLLINO range. If you are doing big and complex projects, the Controllino MEGA is the perfect fit. With its countless input and output channels and high maximum current of 30A, you can handle any automation and controlling project with ease.

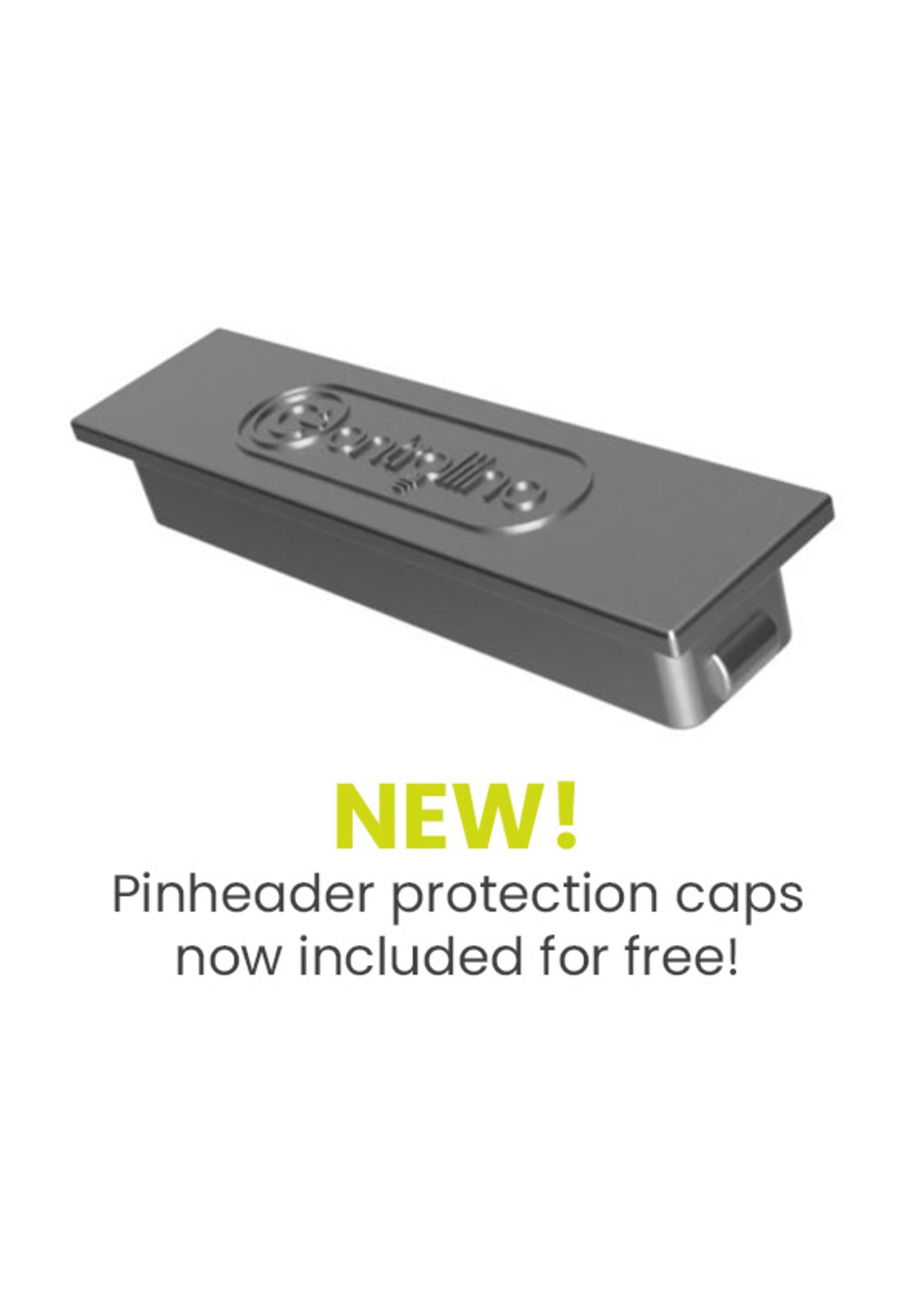

Pinheader protection caps included!
Specifications
| Features | MEGA |
| 5V Pin Headers | Yes |
| Analog/Digital Inputs | 16 |
| Only Digital Inputs | 5 |
| Analog 0-10V Inputs | No |
| Interrupt Inputs | 2 |
| Digital 2A Outputs | 24 (15 PWM) |
| Analog 0-10V Outputs | No |
| Relay Outputs | 16 |
| Serial TTL Interface | 2 |
| I²C Interface | 1 |
| SPI Interface | 1 |
| RS485 Interface | 1 |
| RTC | 1 |
Shipping & Returns
It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.
After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns
What's Included?
This product includes 1x CONTROLLINO MEGA
Documentation
