CONTROLLINO MAXI POWER
CONTROLLINO MAXI POWER
0 in stock
No se pudo cargar la disponibilidad de retiro
Description

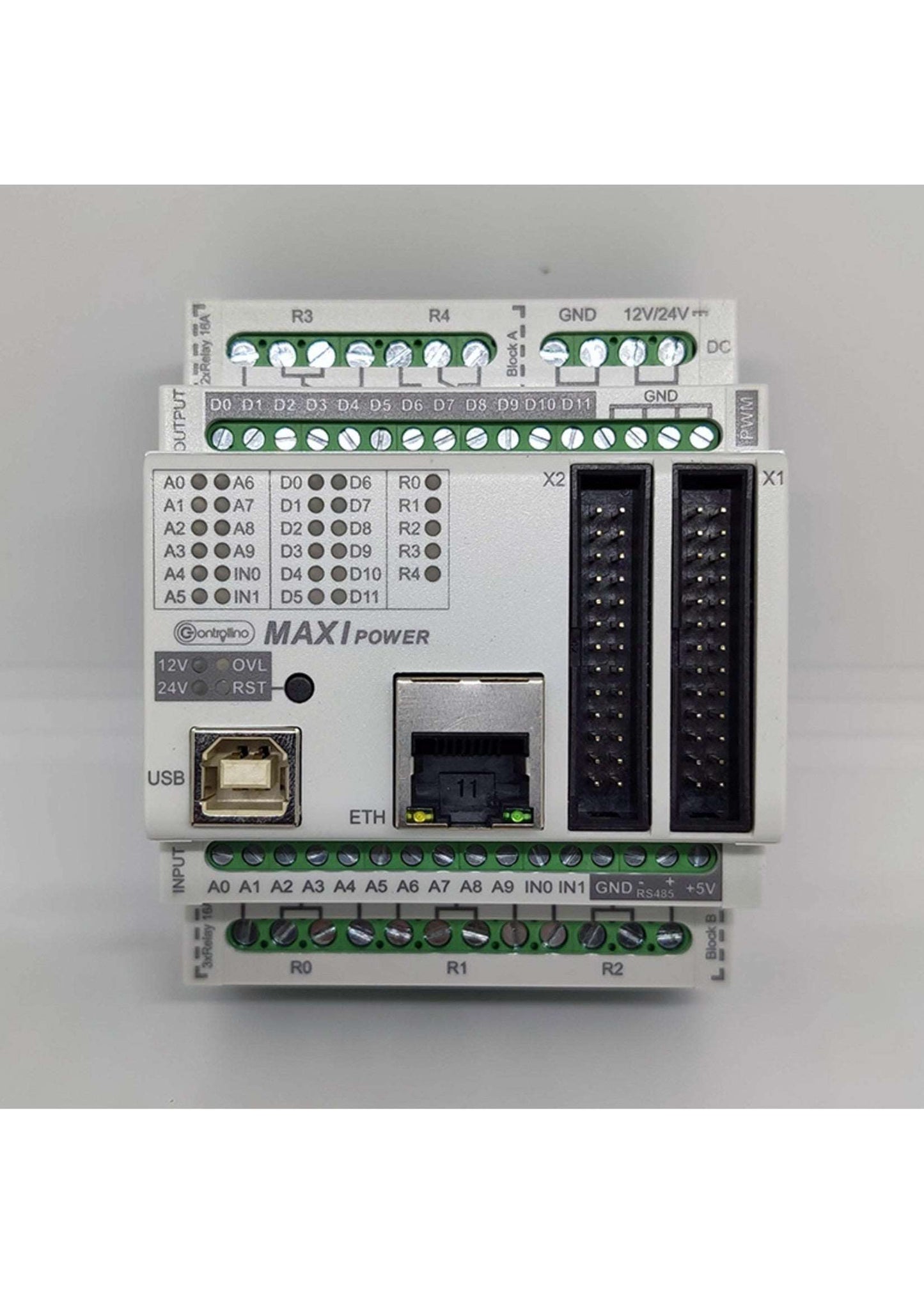

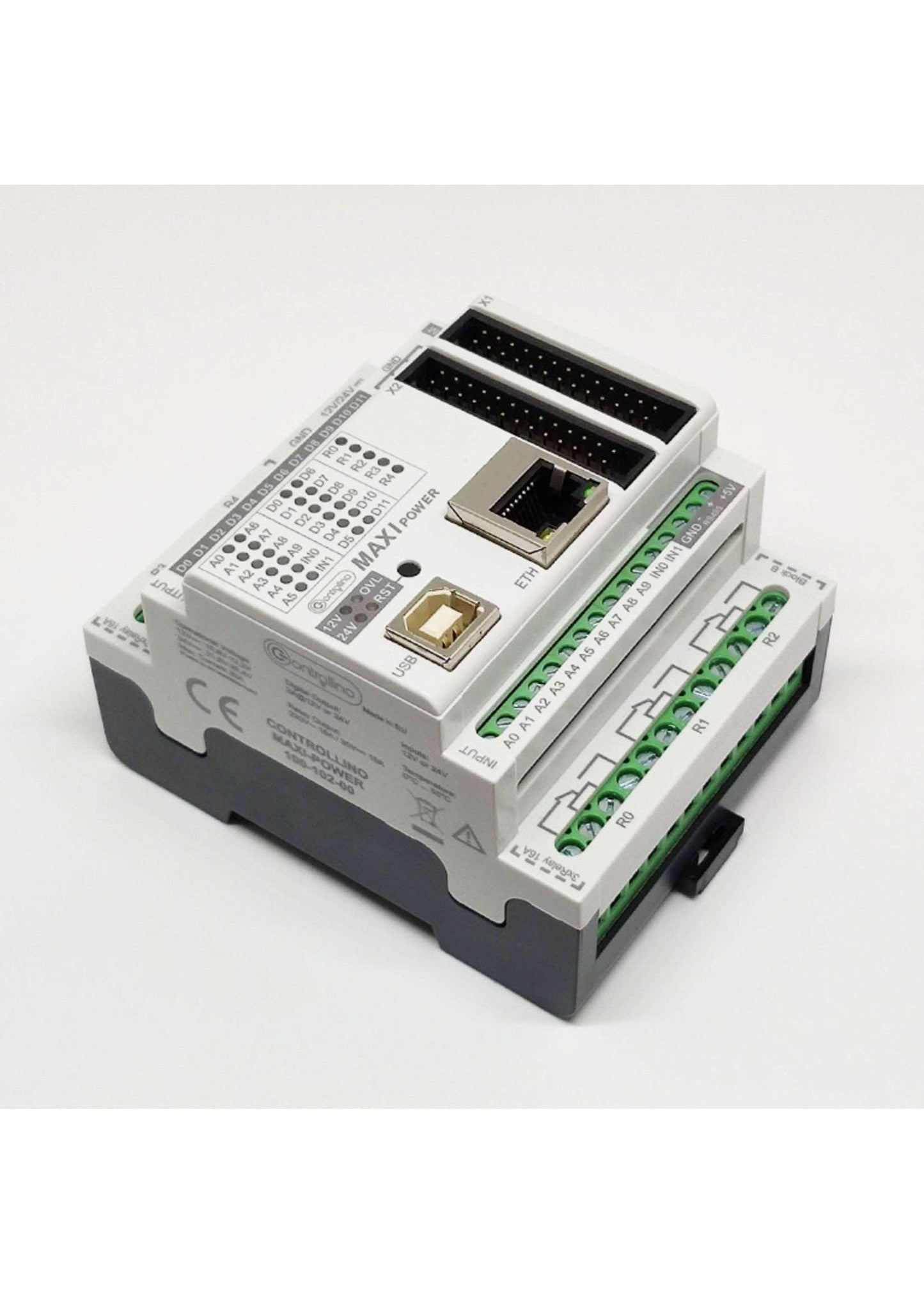

CONTROLLINO MAXI POWER
The MAXI is the bestselling model in our CONTROLLINO range and is now available as MAXI Power variant with 5x 16 Amps relays! It is the perfect compromise between compact size and big input and output quantity. The core competence is its flexibility.

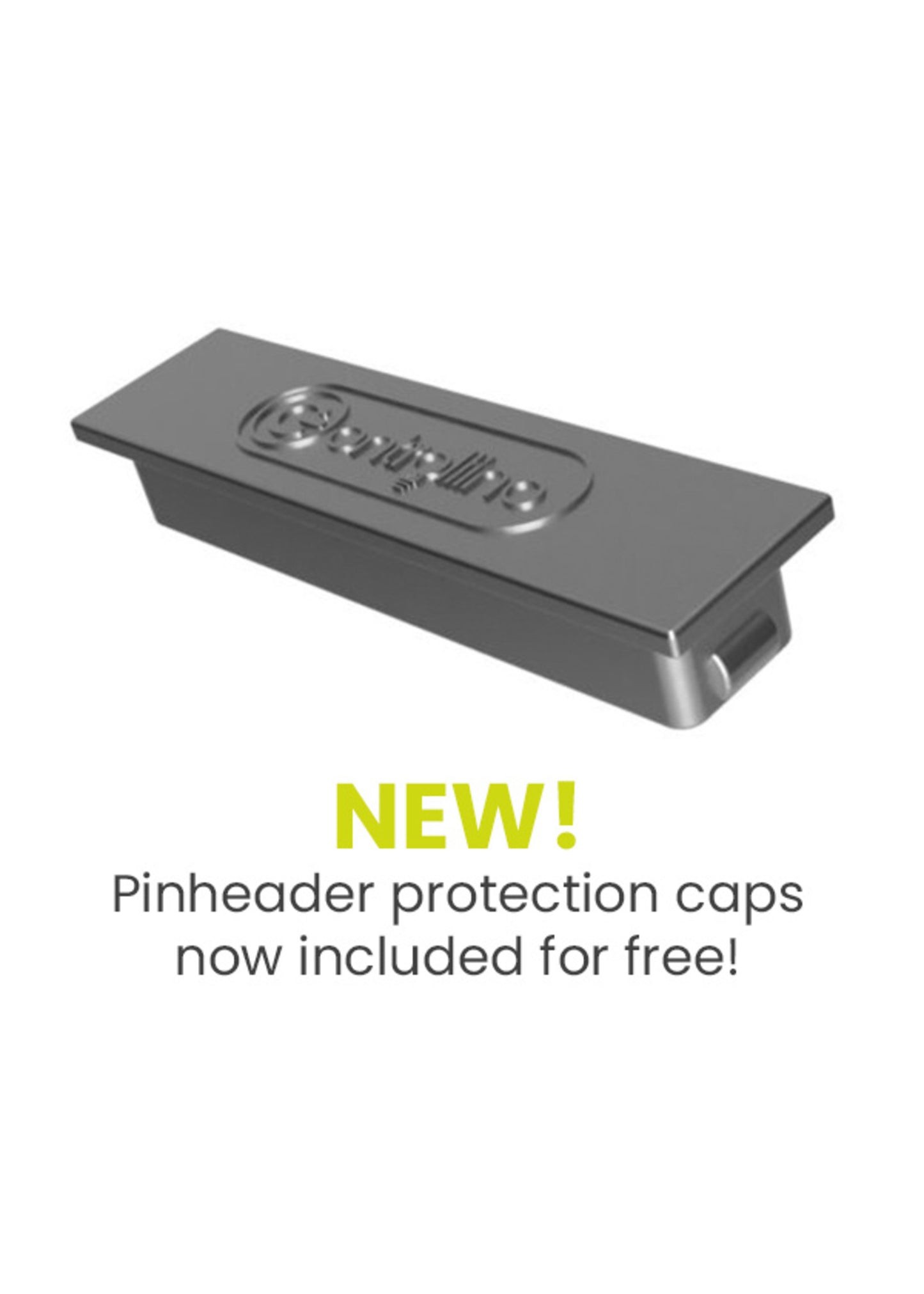

Pinheader protection caps included!
Specifications
| Features | MAXI Power |
| 5V Pin Headers | Yes |
| Analog/Digital Inputs | 10 |
| Only Digital Inputs | 2 |
| Analog 0-10V Inputs | no |
| Interrupt Inputs | 2 |
| Digital 2A Outputs | 12 (all PWM) |
| Analog 0-10V Outputs | no |
| Relay Outputs | 5 (16A) |
| Serial TTL Interface | 2 |
| I²C Interface | 1 |
| SPI Interface | 1 |
| RS485 Interface | 1 |
| RTC | 1 |
Shipping & Returns
It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.
After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns
What's Included?
This product includes 1x CONTROLLINO MAXI POWER
Documentation
