Atlas Scientific

Electrically Isolated EZO™ Carrier Board

Electrically Isolated EZO™ Carrier Board

Normaler Preis €28.95 EUR
Normaler Preis Verkaufspreis €28.95 EUR
Sale Ausverkauft
Versand wird beim Checkout berechnet

63 in stock

Description

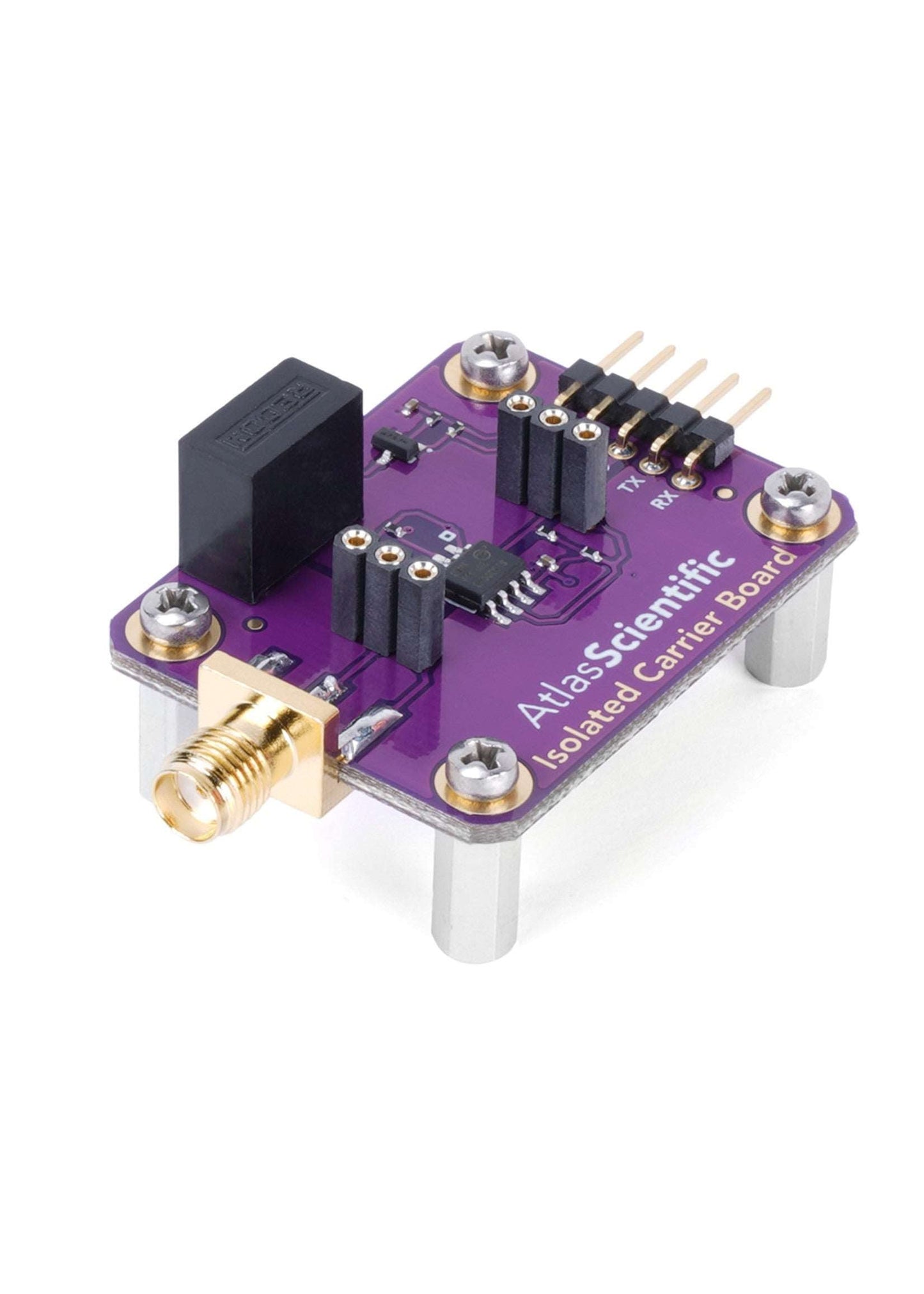

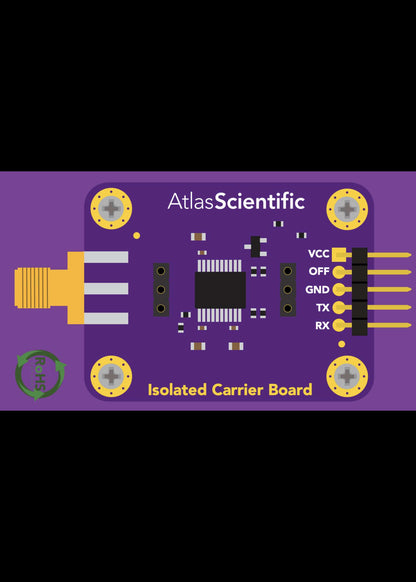

This carrier board utilizes the newest isolation technology, giving us the ability to put isolation into smaller footprint circuits.

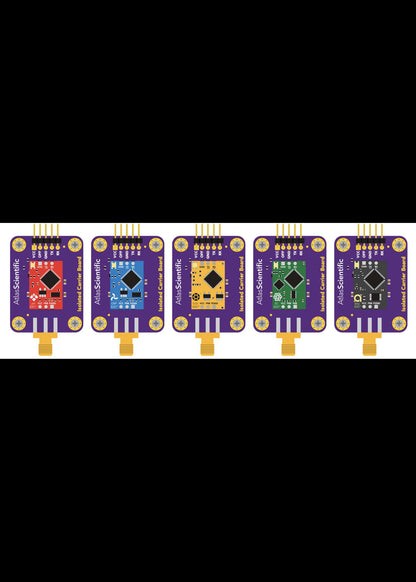

The Electrically isolated EZO™ carrier board is an easy way to connect an Atlas Scientific EZO™ circuit to your CPU, eliminating the need for a bread board and an external isolator.
The Electrically isolated EZO™ carrier board comes without any connector.

Specifications

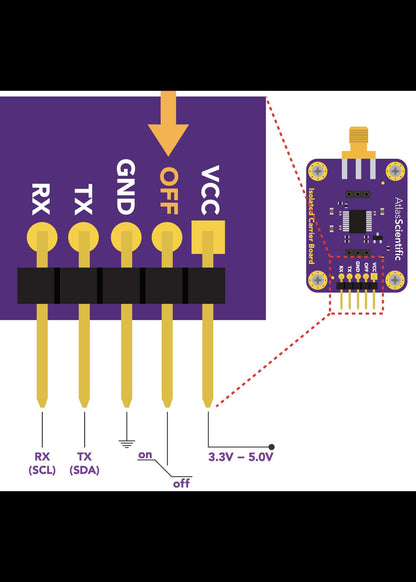

Data inputUART or I2C
Voltage input3.0V − 5.0V
Probe connectorFemale SMA
Current consumption5V – 28 mA
3.3V – 22 mA
Power saving mode (OFF pin)2.6mA

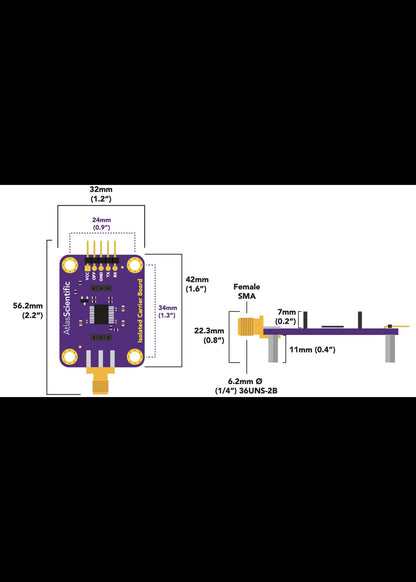

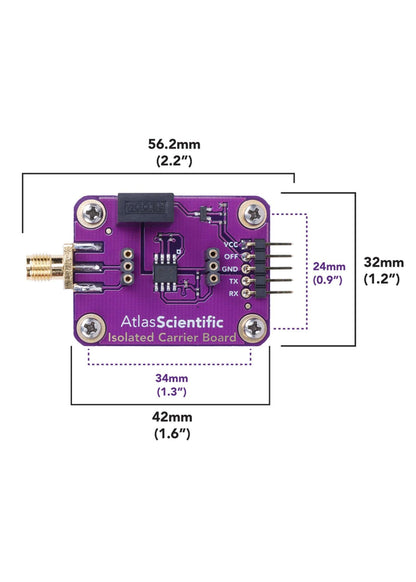

Carrier Board dimensions56.2mm x 32mm (2.2″ x 1.2″)
Weight25 grams

Shipping & Returns

It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.

After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns

What's Included?

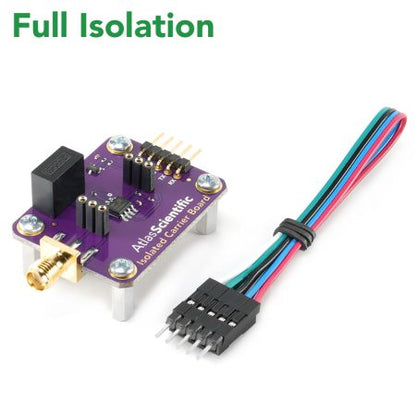

The Electrically Isolated EZO™ Carrier Board comes with:



• 4x standoffs & screws
• 1x 5 pin jumper cable and

• 1x 5 pin male header

Documentation
