Atlas Scientific

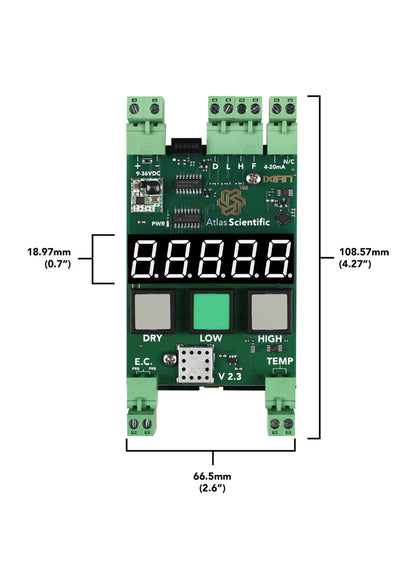

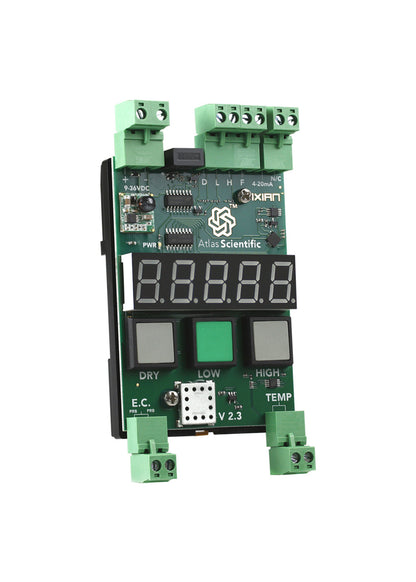

IXIAN™ Conductivity Transmitter

IXIAN™ Conductivity Transmitter

Preço normal €329.95 EUR
Preço normal Preço de saldo €329.95 EUR
Em promoção Esgotado
Envio calculado na finalização da compra.

5 in stock

Description

Designed with PLCs in mind, the Atlas Scientific IXIAN™ EC transmitter is a simple to use EC transmitter. The 4-20mA data output and display makes it easy to read.

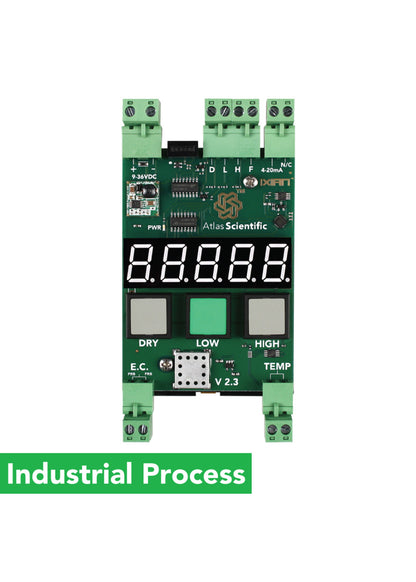

Ixian™ Conductivity Transmitter is specially designed for industrial applications.

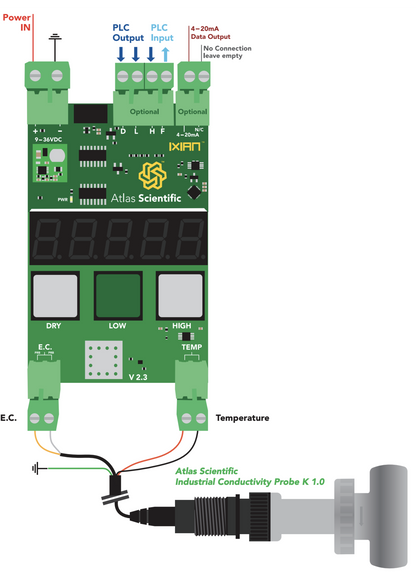

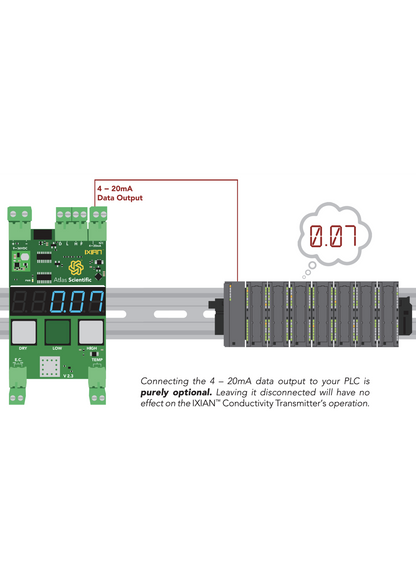

Ideal for integrating into a PLC application (4-20mA output).
2-point calibration using push buttons.




Specifications

ReadsConductivity
Range0.07μS – 100,000μS
Accuracy+/– 2%
Calibration1 or 2 point
(remotely though PLC or directly on board)

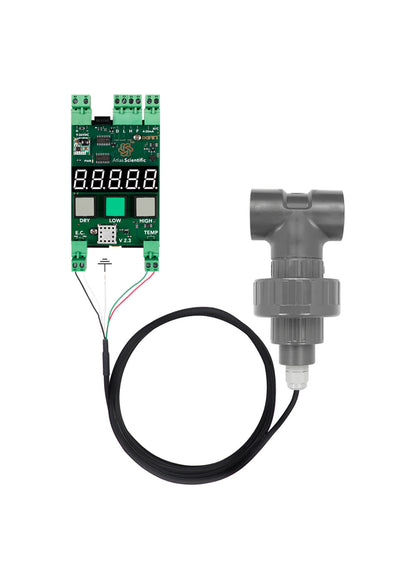

Supported probesAny two lead conductivity probe
(K 0.01, K 0.1, K 1.0, K 10)
Temp probePT-100 or PT-1000
Auto temp compensationYes

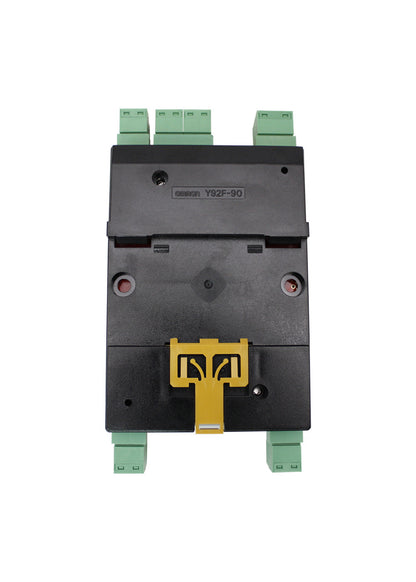

Mount35mm Din rail
Output4 − 20mA
Operating voltage9VDC − 36VDC
Electrically isolatedYes

Shipping & Returns

It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.

After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns

What's Included?

The IXIAN™ Conductivity Transmitter comes with:



• 1x IXIAN™ Conductivity Transmitter

Documentation
