Industrial Conductivity Transmitter
Industrial Conductivity Transmitter
Description
Those of us who work with PLCs clearly understand both the power and limitations of industrial computers. Modern low voltage elections and communication protocols aren’t easily compatible with PLCs.
Fortunately, the Atlas Scientific Industrial Conductivity transmitter makes it easy to get high accuracy conductivity readings on your PLC for less than half the price of comparable devices on the market today.
Specifications
| Reads | Conductivity |
| Range | 0.07μS – 100,000μS |
| Accuracy | +/– 2% |
| Calibration | 1 or 2 point (remotely though PLC or directly on board) |
| Supported probes | Any two lead conductivity probe (K 0.01, K 0.1, K 1.0, K 10) |
| Temp probe | PT-100 or PT-1000 |
| Auto temp compensation | Yes |
| International standard | ISO 7888 compliant (determination of electrical conductivity) |

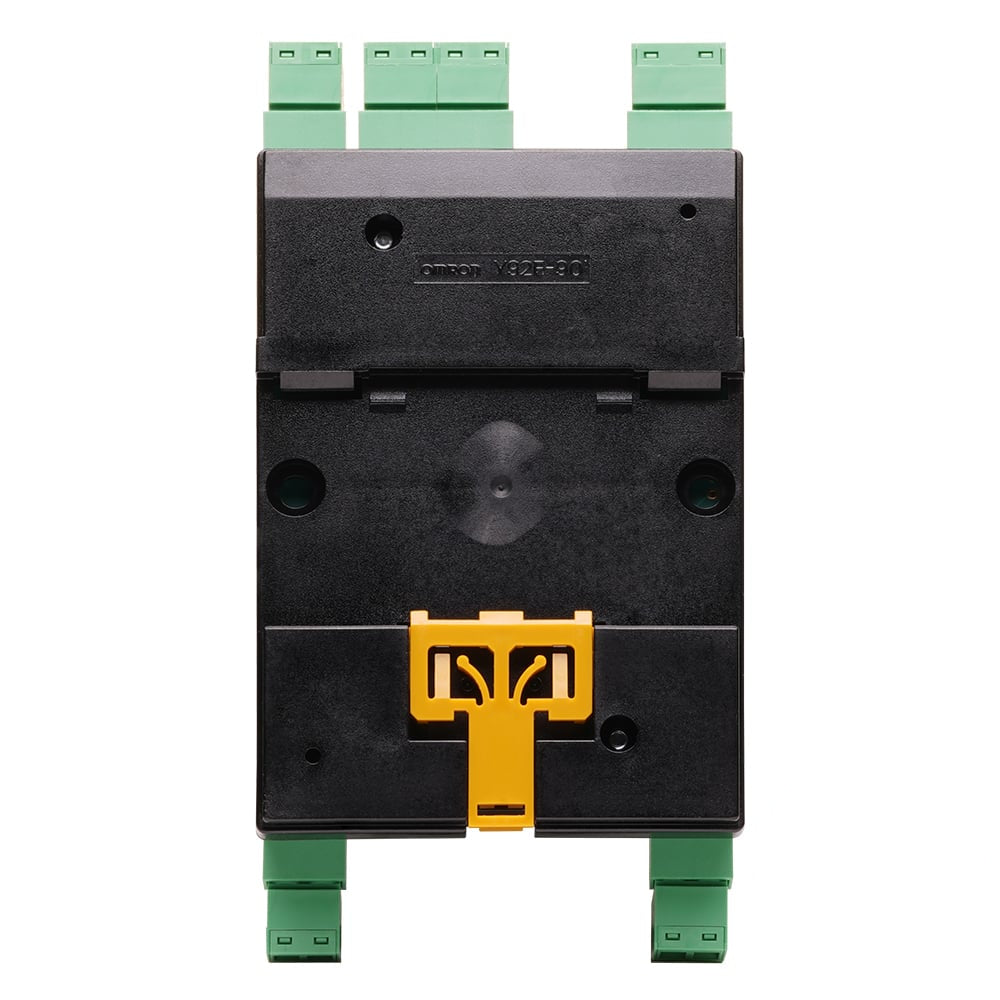

| Mount | 35mm Din rail |
| Output | 4 − 20mA |
| Operating voltage | 9VDC − 36VDC |
| Electrically isolated | Yes |
Shipping & Returns
It may happen that you want to return an order. Because the product does not suit you, maybe there is another reason why you would not want the order. Whatever the reason, you have the right to cancel your order up to 14 days after receipt without giving a reason.
After cancellation you have 14 days to return your product. You will then be credited 85% order amount excluding shipping. For more information click the following link: /pages/shipping-and-returns
What's Included?
The Industrial Conductivity Transmitter comes with:
1x Industrial Conductivity Transmitter
Documentation
